PID/Data Monitor Item Table 2

PID/DATA MONITOR ITEM TABLE

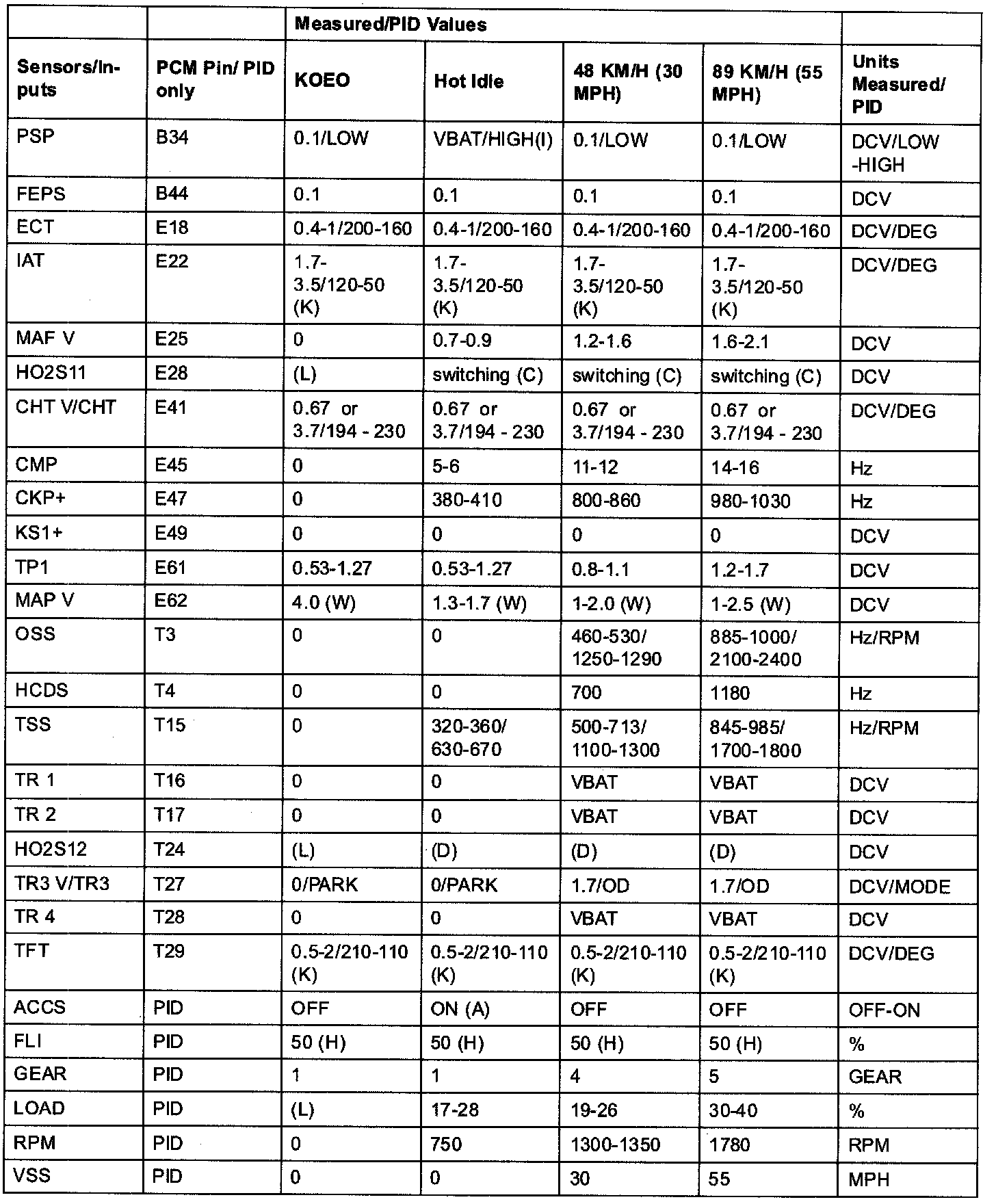

Sensors/Inputs (Part 1):




Sensors/Inputs (Part 2):




Sensors/Inputs

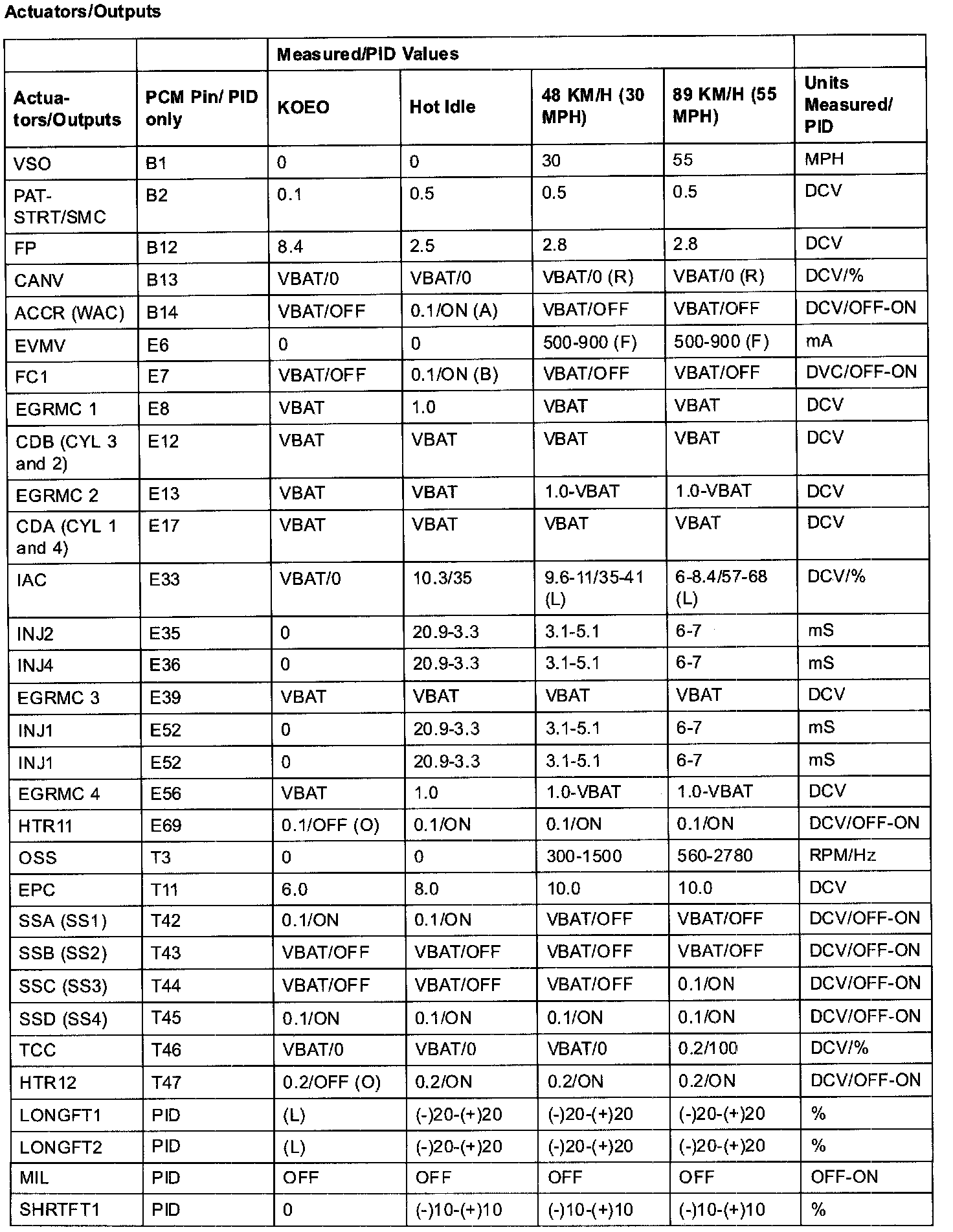

Actuator/Outputs (Part 1):




Actuator/Outputs (Part 2):




Actuators/Outputs

Other:




Other
