Immobilizer System (Advanced Keyless System)

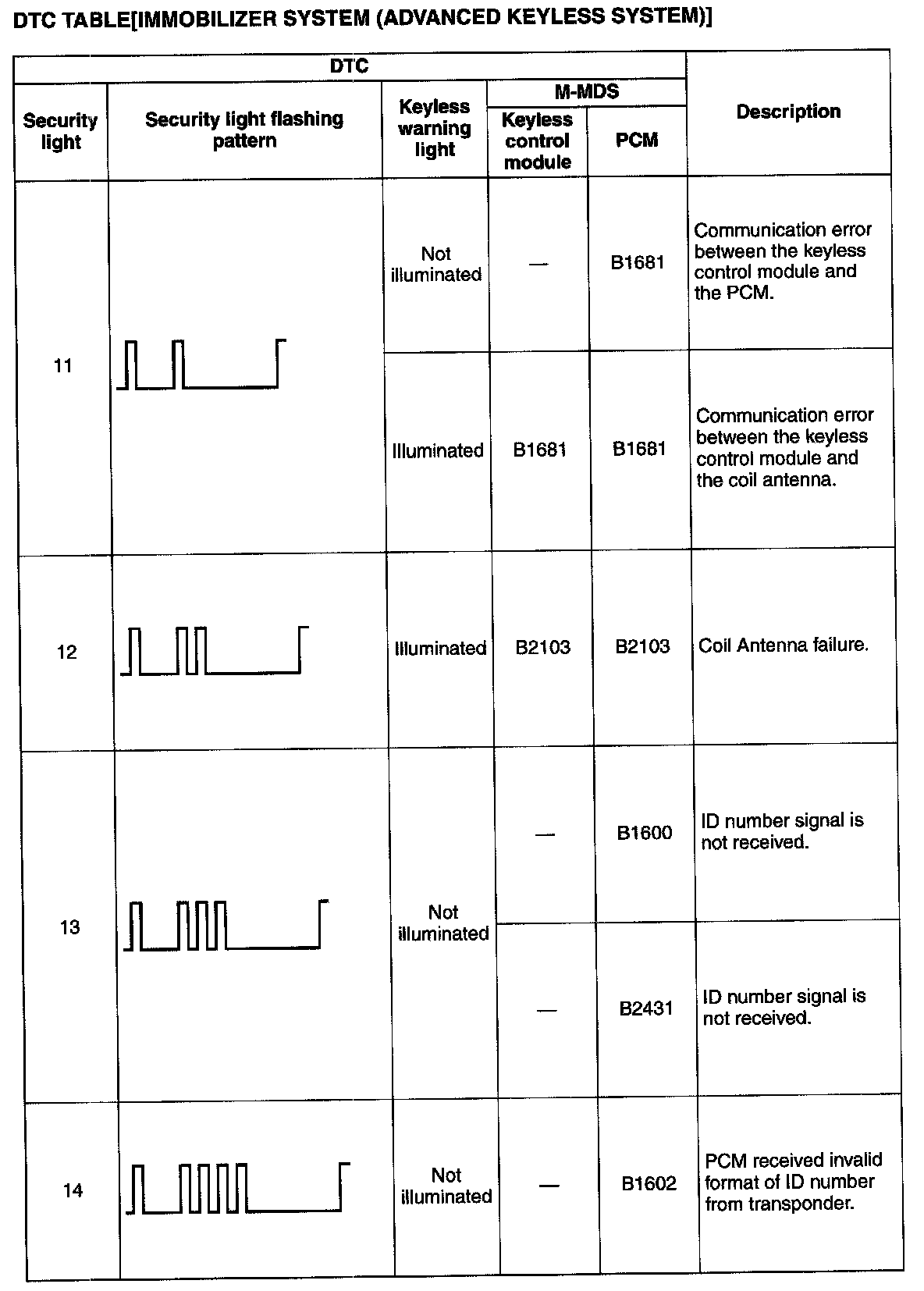

DTC TABLE [IMMOBILIZER SYSTEM (ADVANCED KEYLESS SYSTEM)]

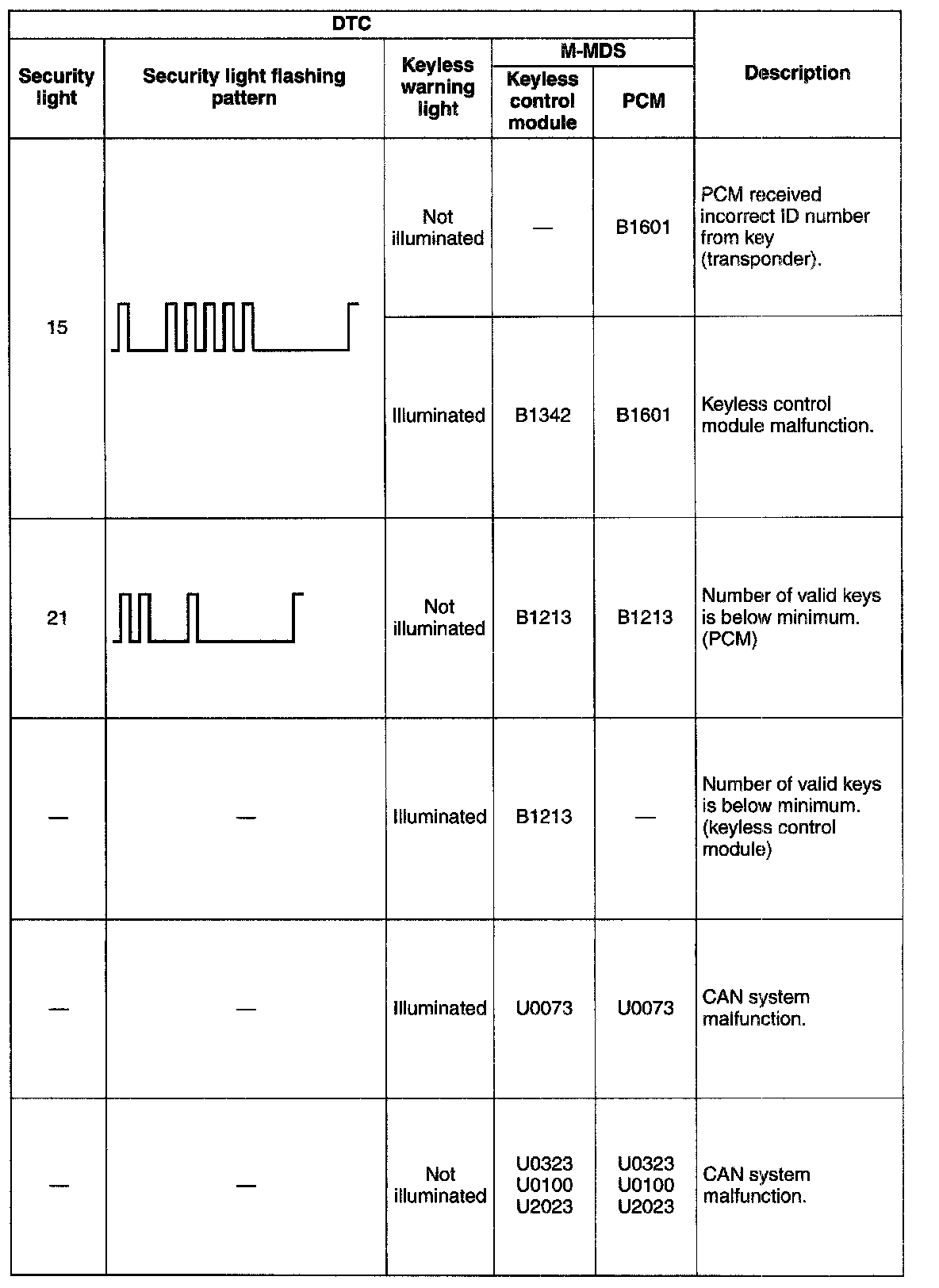

DTC Table [Immobilizer System (Advanced Keyless System)]:




DTC Table [Immobilizer System (Advanced Keyless System)]:





NOTE:
- Perform the following it the security light stays on:
- If engine stalls, go to symptom troubleshooting NO.11 ENGINE STALLS/QUITS, ENGINE RUINS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES" in. (See NO.11 ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES[L3 WITH TC].)
- It engine won't start, go to symptom troubleshooting NO.6 CRANKS NORMALLY BUT WILL NOT START' in. (See NO.6 CRANKS NORMALLY BUT WILL NOT START[L3 WITH TC].)
