Immobilizer System (Keyless Entry System)

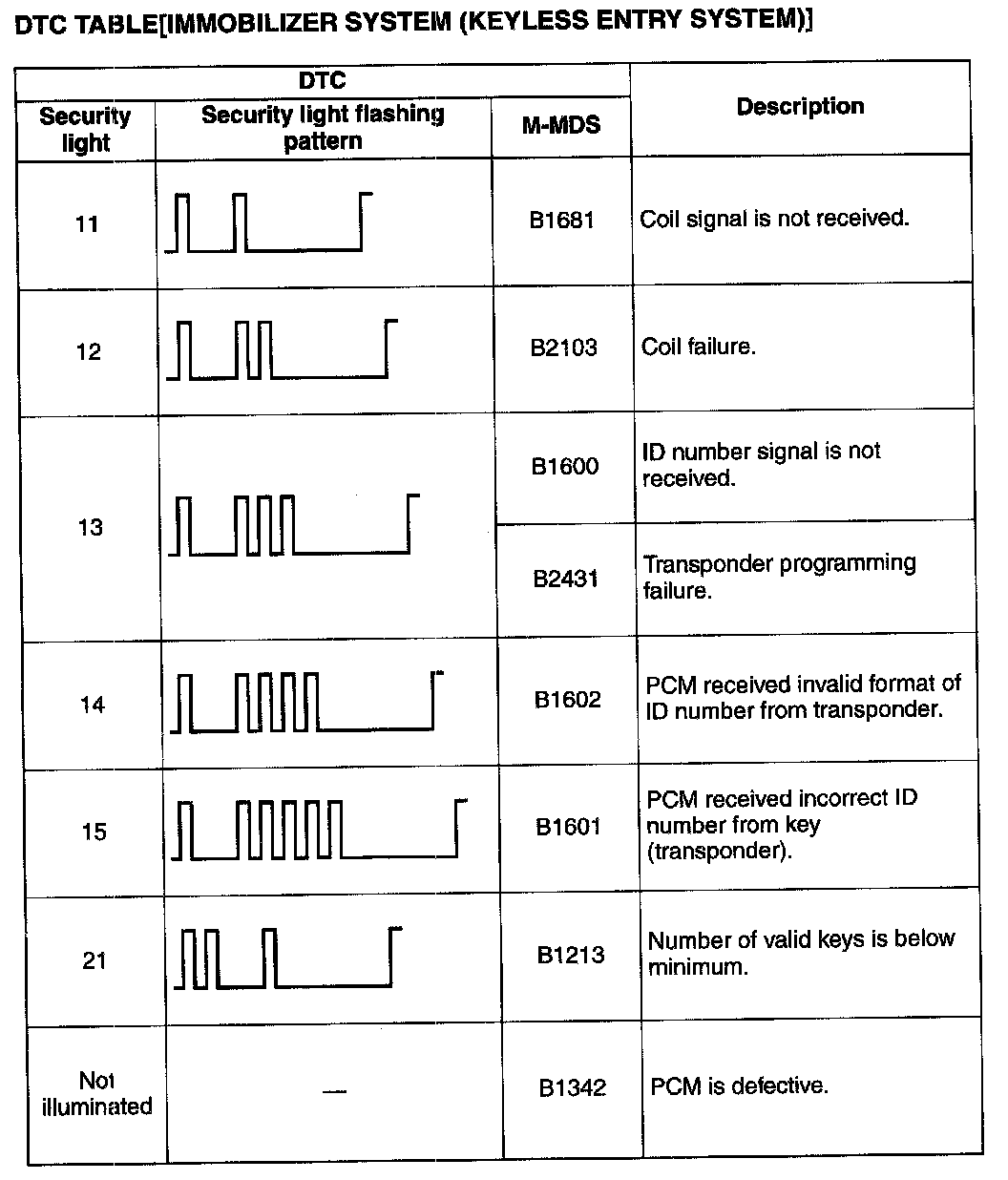

DTC Table[Immobilizer System (Keyless Entry System)]:

DTC TABLE [IMMOBILIZER SYSTEM (KEYLESS ENTRY SYSTEM)]

NOTE:
- Perform the following if the security light stays on:
- If engine stalls, go to symptom troubleshooting NO.11 "ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES" in. (See NO.11 ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES[L3).) (See NO.11 ENGINE STALLS/QUITS, ENGINE RUNS ROUGH, MISSES, BUCK/JERK, HESITATION/STUMBLE, SURGES[AJ].)
- If engine won't start, go to symptom troubleshooting NO.6 "CRANKS NORMALLY BUT WILL NOT START" in. (See NO.6 CRANKS NORMALLY BUT WILL NOT START[L3].)(See NO.6 CRANKS NORMALLY BUT WILL NOT START[AJ].)
- If engine condition is normal but light stays on, inspect for continuity between the following wiring harness and body ground: security light and PCM terminal 2W (L3) or 2 (AJ). Repair or replace the wiring harness.
