Removal and Installation

FRONT SEAT REMOVAL/INSTALLATION

WARNING: Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the front seat (with a side air bag).

CAUTION:
- When the passenger's seat is removed, perform the seat weight sensor inspection using the WDS or equivalent after installing the passenger's seat.(See SEAT WEIGHT SENSOR INSPECTION.) Testing and Inspection
- When the passenger's seat is replaced with a new one, perform the seat weight sensor calibration using the WDS or equivalent.

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.

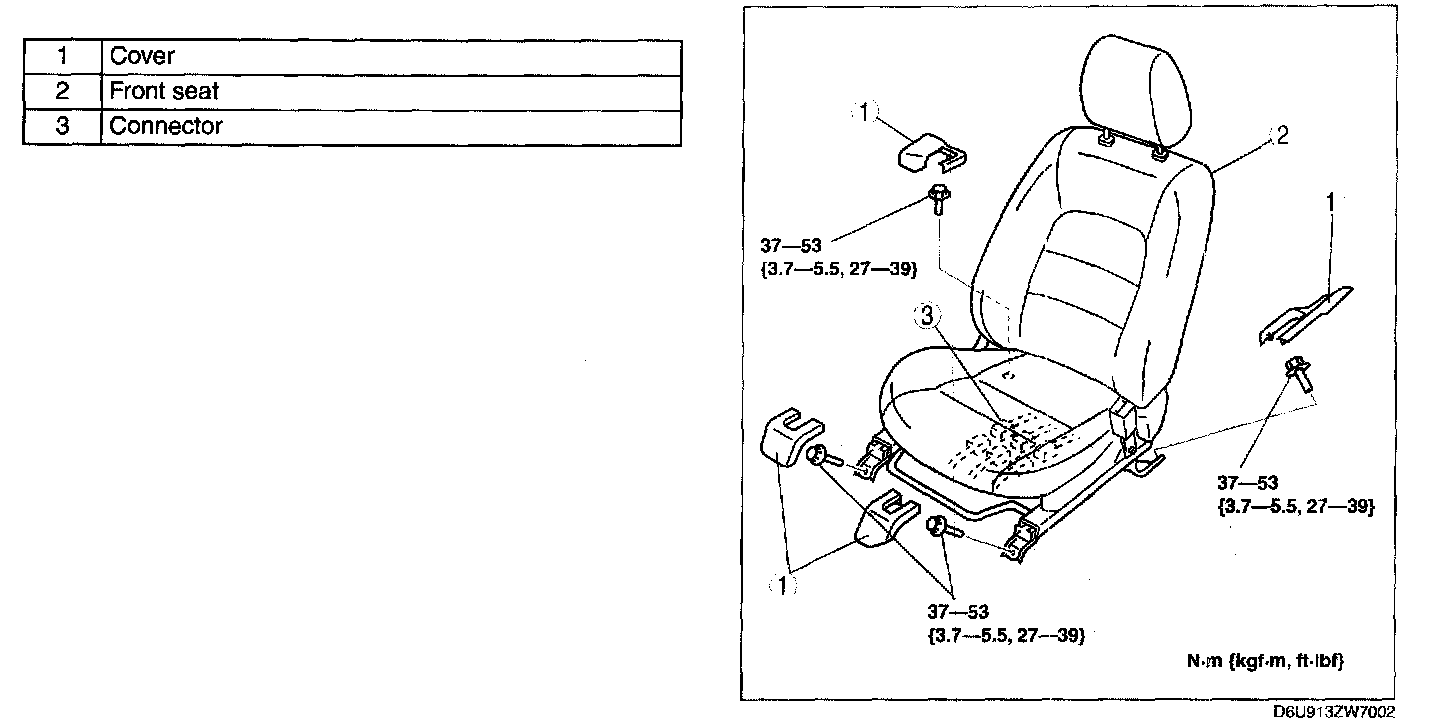

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
