Coolant Temperature Sensor / Switch HVAC: Service and Repair

A/C WATER TEMPERATURE SENSOR REMOVAL/INSTALLATION [L3 WITH TC]

1. Disconnect the negative battery cable.
2. Remove the following parts.
1. Glove compartment
2. Console
3. Meter hood
4. Instrument cluster
5. Column cover
6. Lower panel
7. Steering shaft
8. A-pillar trim
9. Front scuff plate
10. Front side trim
11. Side panel

3. Remove the dashboard

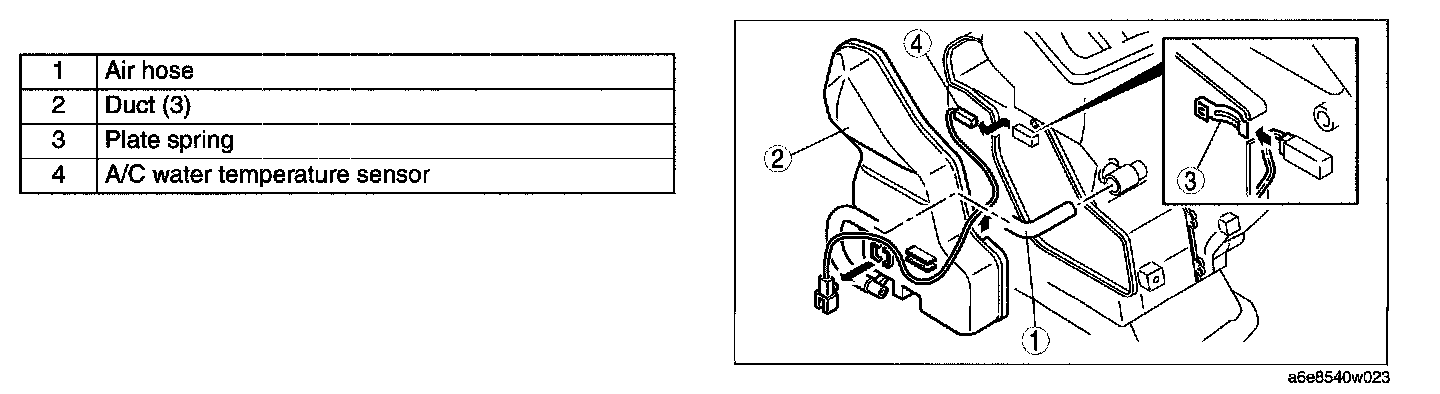

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
