Backup Lamp Switch: Service and Repair

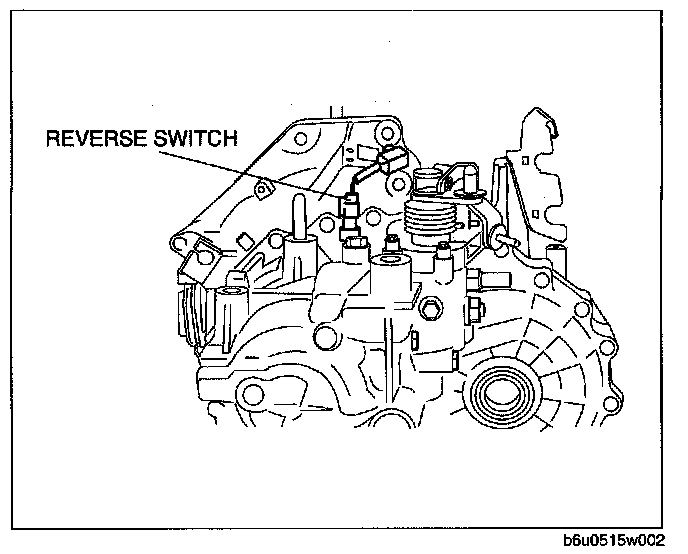

REVERSE SWITCH REMOVAL/INSTALLATION [A65M-R] 1.
Remove the reverse switch.
2.
Apply a light coat of silicone sealant to the screw of the reverse switch.
Sealant: Three Bond product: TB1215 3.
Install the reverse switch to the transaxle case.
Tightening torque 22.5 - 33.3 N-m (2.3 - 3.4 kgf-m, 16.6 - 24.6 ft-lbf)
