Drive Belt: Service and Repair
DRIVE BELT REPLACEMENT [L3 WITH TC] 1.
Remove the splash shield (RH).
2.

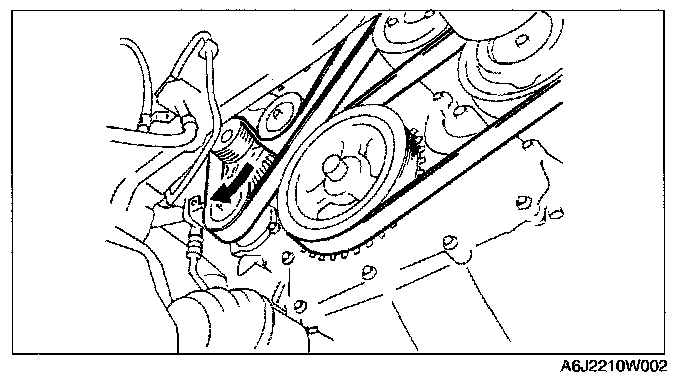

Rotate the
drive belt auto tensioner in the direction shown in the figure and remove the drive belt.
3.
Install a new
drive belt.
4.
Verify that the
drive belt auto tensioner indicator mark does not exceed the limit. (See DRIVE BELT INSPECTION [L3 WITH TC].)
Testing and Inspection 5.
Install the splash shield (RH).
