Knock Sensor: Service and Repair

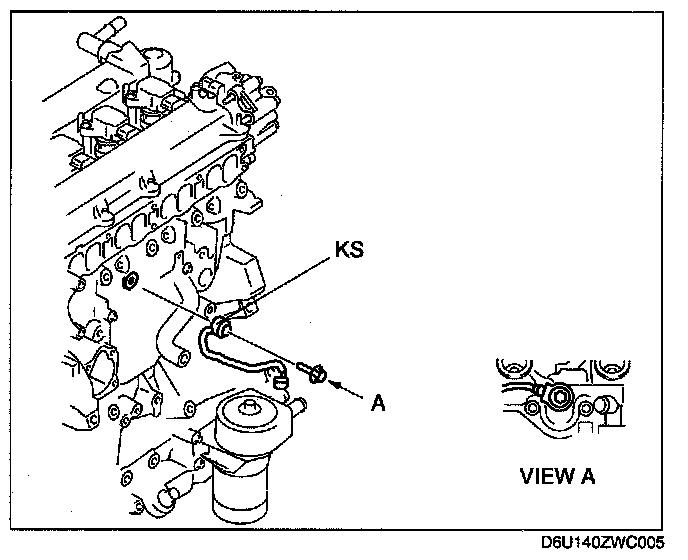

KNOCK SENSOR (KS) REMOVAL/INSTALLATION[L3 WITH TC] CAUTION: Be careful not to impact the sensor.Verify that there is no debris between the sensor and the cylinder block before installing. 1.
Remove the intake manifold.
2.
Remove the
KS attachment bolt to remove the KS.
3.
Install in the reverse order of removal.
Tightening torque:
16-24 N.m {1.7-2.4 kgf.m, 12-17 ft.lbf)
