[FS5A-EL]

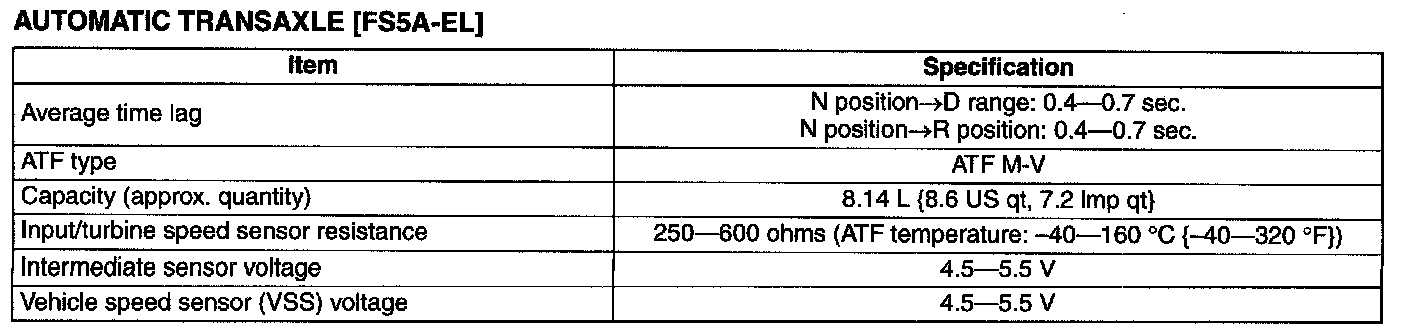

AUTOMATIC TRANSAXLE [FS5A-EL] Automatic Transaxle (FS5A-EL):

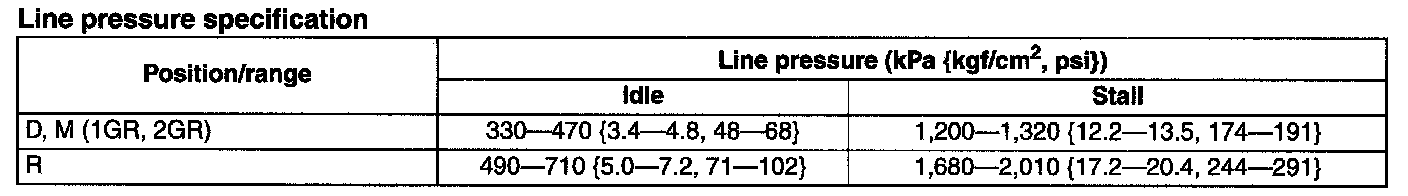

Line Pressure Specification:

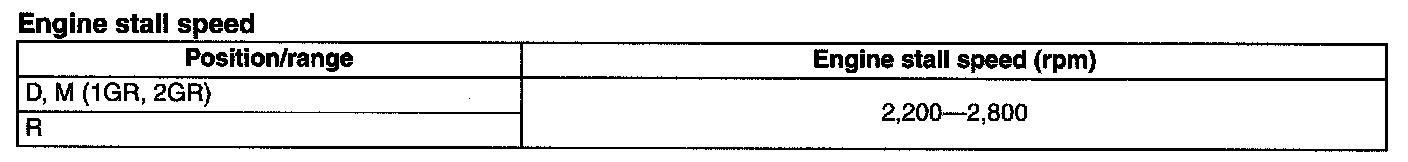

Engine Stall Speed:
Transaxle Range (TR) Switch:
Transaxle Fluid Temperature (TFT) Sensor:

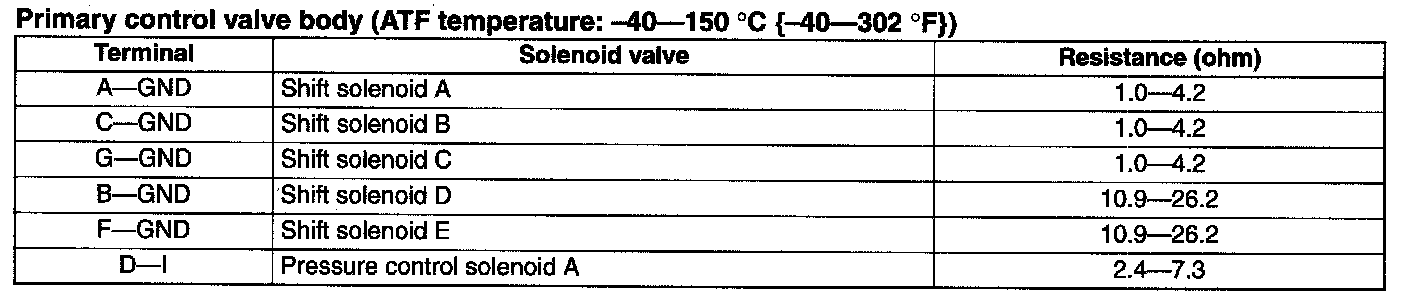

Primary Control Valve Body:
Secondary Control Valve Body:

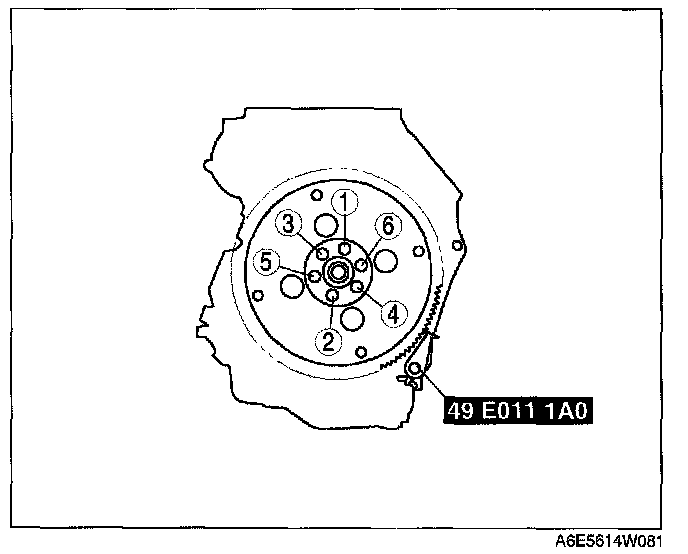

DRIVE PLATE Tighten the new drive plate mounting bolts in two or three steps in the order shown.
Tightening torque
108 - 116 N-m (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft-lbf)
