[A26MX-R]

Flywheel
Hand-tighten the new flywheel lock bolts.

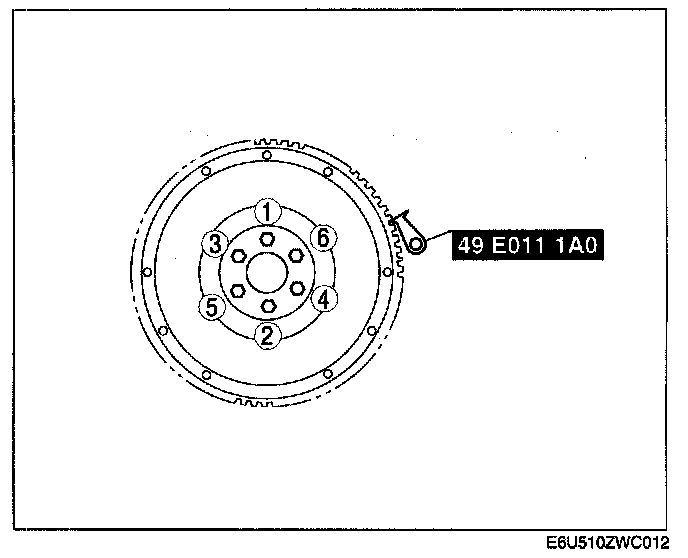

Gradually tighten the flywheel lock bolts in a crisscross pattern.
Tightening torque 151.3 - 161.1 N-m, (15.3 - 16.4 kgf-m, 111.6 - 118.8 ft-lbf)
