[G35M-R, A65M-R]

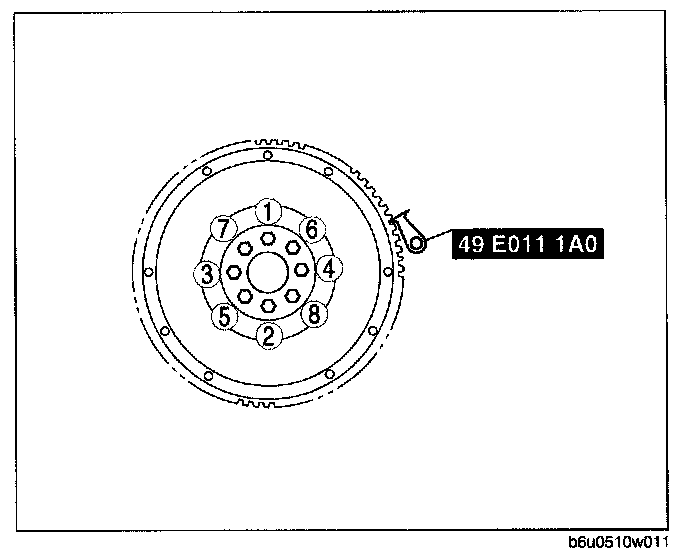

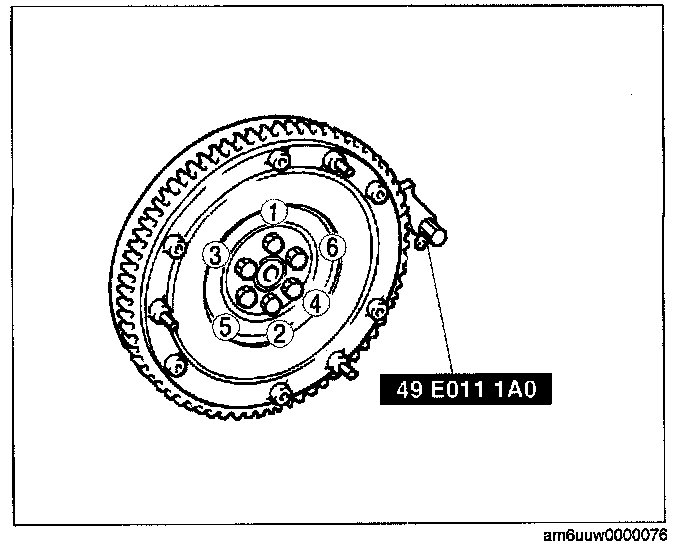

Flywheel G35M-R manual transaxle models A65M-R manual transaxle models Gradually tighten the
flywheel lock bolts in a crisscross pattern.
Tightening torque
G35M-R manual transaxle models
108 - 115 N-m (11.1 - 11.7 kgf-m, 79.7 - 84.8 ft-lbf)
A65M-R manual transaxle models
73 - 87 N-m (7.5 - 8.8 kgf-m, 54 - 64 ft-lbf)
