Navigation Check [Car-Navigation System]

NAVIGATION CHECK [CAR-NAVIGATION SYSTEM]

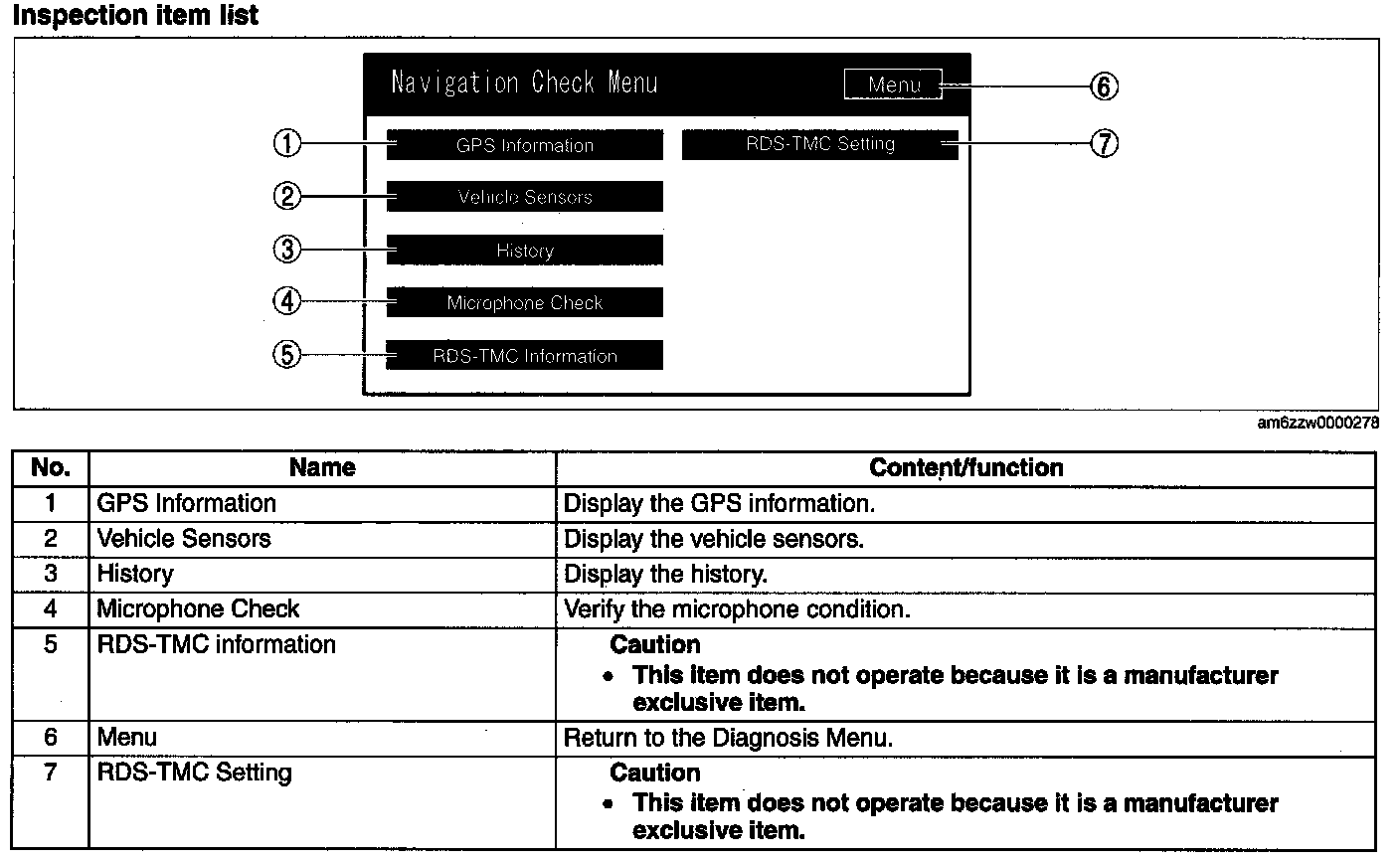

Inspection Item List:

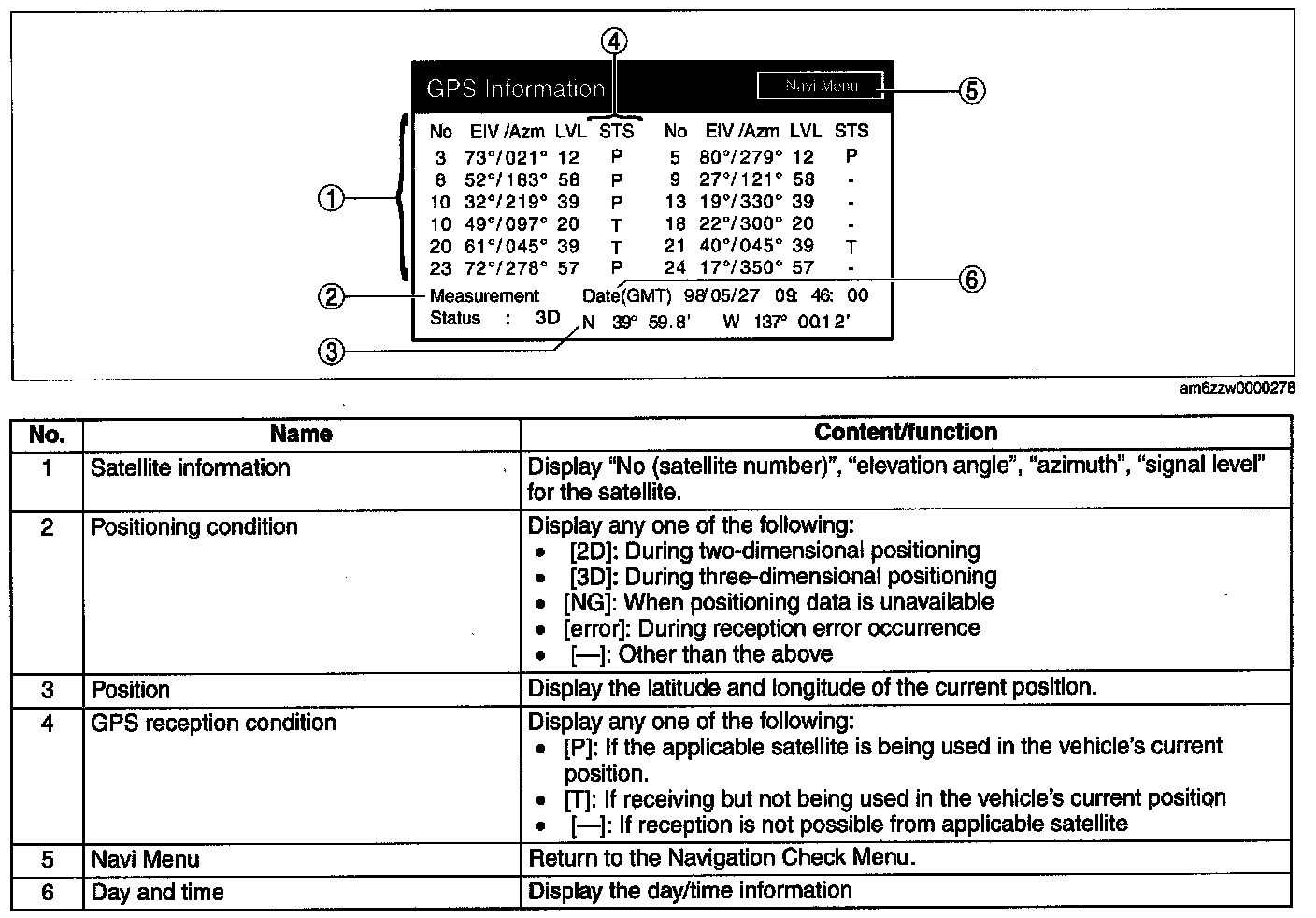

GPS Information
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR- NAVIGATION SYSTEM].) Starting Procedure For Diagnostic Mode [Car-Navigation System]
3. Select "Navigation Check".
4. Select "GPS Information".
5. Verify the GPS information.

NOTE: The GPS reception signal is updated every 1 s.

6. To stop the on-board diagnostic mode, switch the ignition to off.

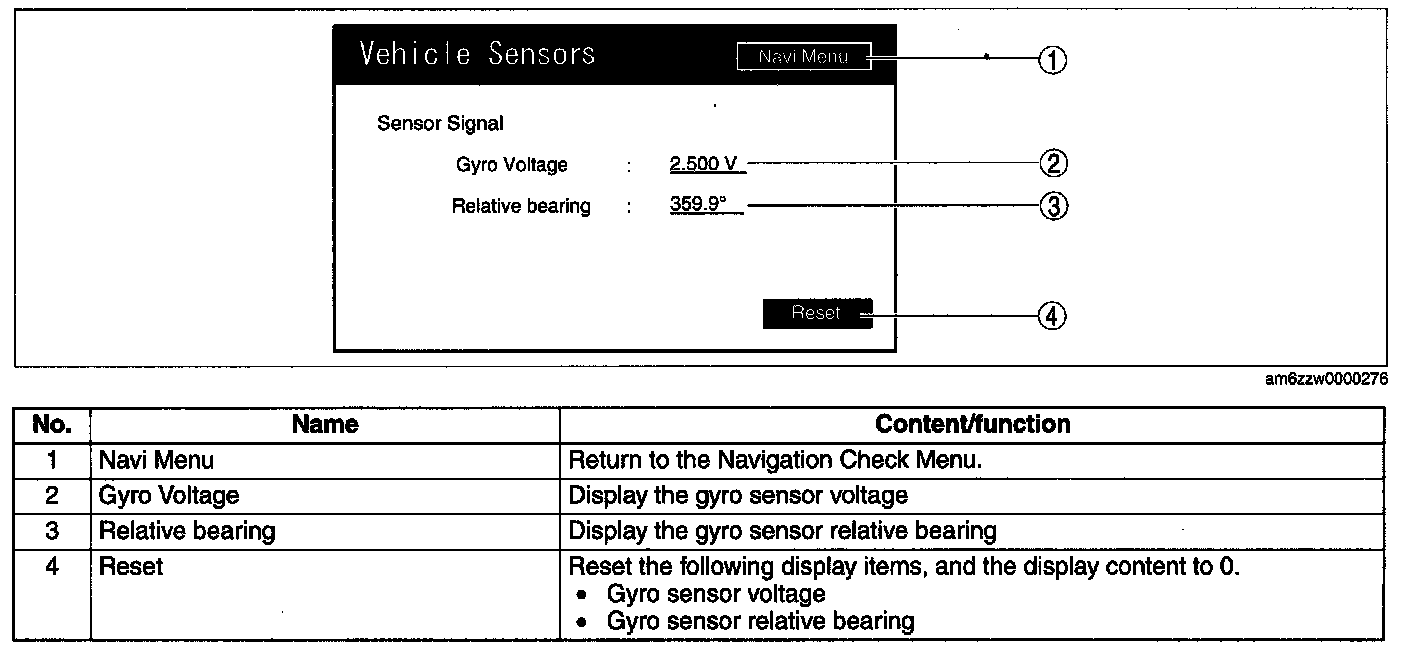

Vehicle Sensors
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR- NAVIGATION SYSTEM].) Starting Procedure For Diagnostic Mode [Car-Navigation System]
3. Select "Navigation Check".
4. Select "Vehicle Sensors".
5. Verify the sensor output condition of the sensor being input to the car navigation unit.

NOTE: The vehicle signal is updated every 1s.

6. To stop the on-board diagnostic mode, switch the ignition to off.

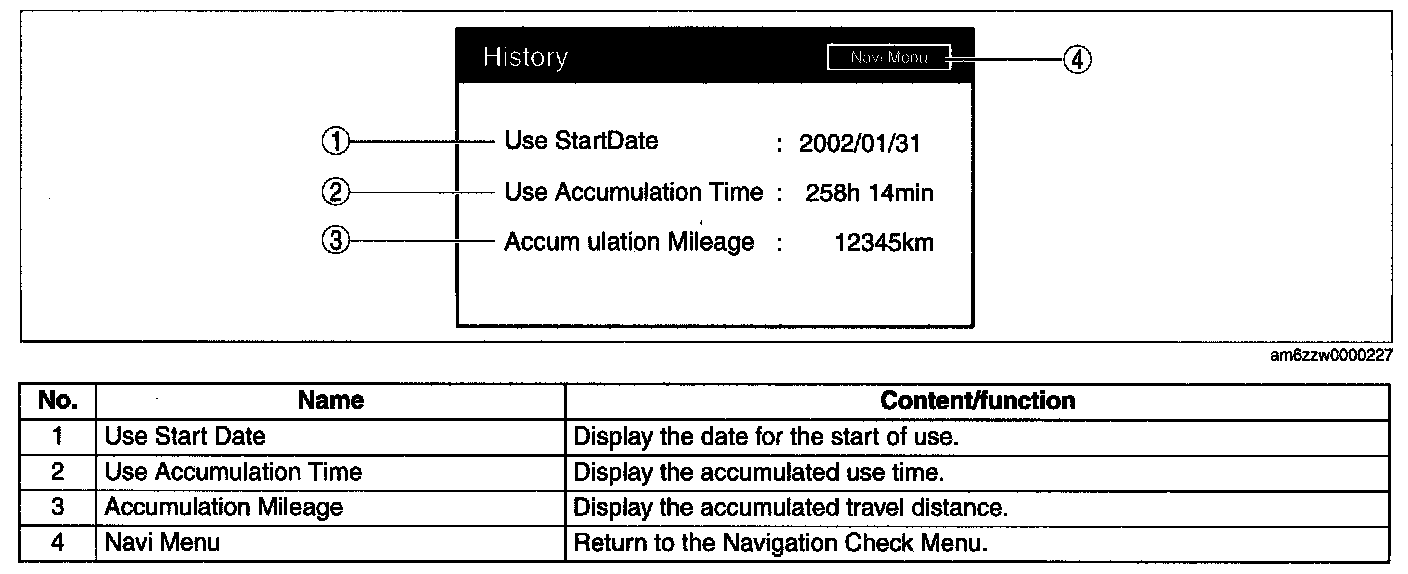

History
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR- NAVIGATION SYSTEM].) Starting Procedure For Diagnostic Mode [Car-Navigation System]
3. Select "Navigation Check".
4. Select "History".
5. Verify the displayed content.
6. To stop the on-board diagnostic mode, switch the ignition to off.

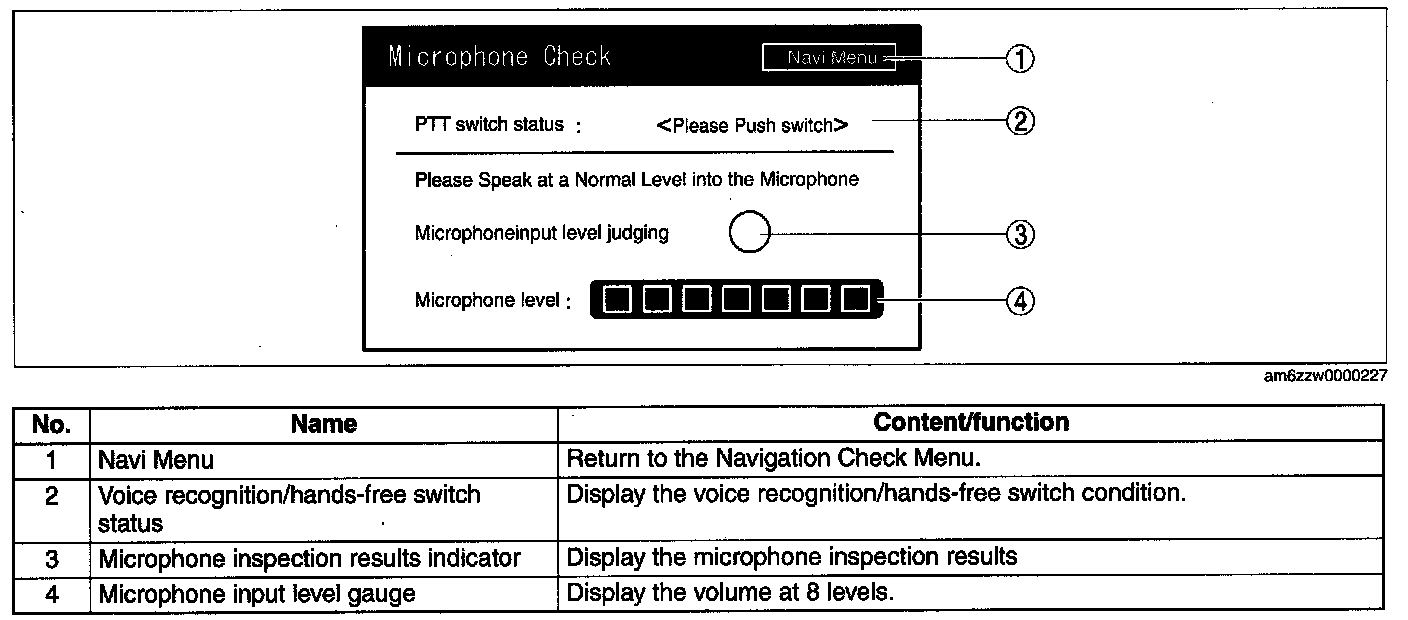

Microphone Check
1. Switch the ignition to ACC or ON.
2. Launch the diagnostic mode. (See STARTING PROCEDURE FOR DIAGNOSTIC MODE [CAR-NAVIGATION SYSTEM].) Starting Procedure For Diagnostic Mode [Car-Navigation System]
3. Select "Navigation Check".
4. Select "Microphone Check".
5. Verify the microphone input condition.
6. To stop the on-board diagnostic mode, switch the ignition to off.
