Diagnostic Check [Car-Navigation System]




DIAGNOSTIC CHECK [CAR-NAVIGATION SYSTEM]

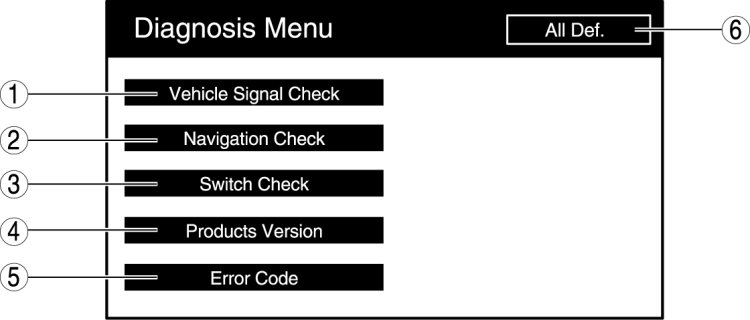

Inspection item list










Vehicle Signal Check

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

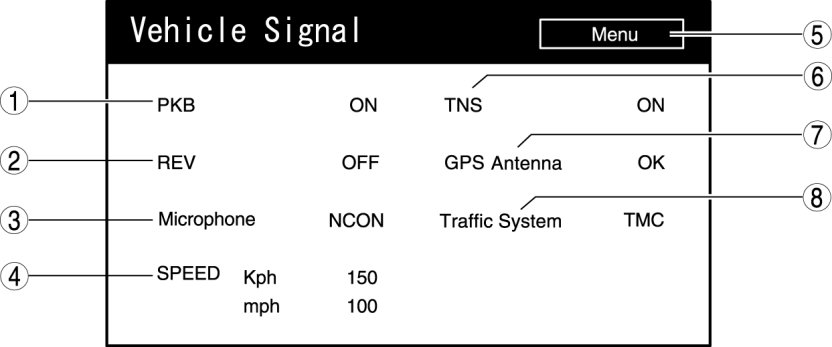

3. Select "Vehicle Signal Check".

4. Verify the condition of the vehicle signal input to the display.

5. To stop the on-board diagnostic mode, switch the ignition to off.










Switch Check

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

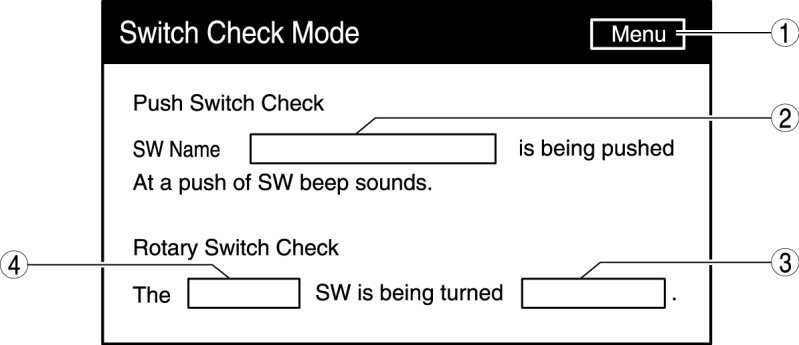

3. Select "Switch Check".

4. Operate the panel switches and verify that they operate correctly.

5. To stop the on-board diagnostic mode, switch the ignition to off.










Products Version

1. Switch the ignition to ACC or ON.

2. Launch the diagnostic mode. Starting Procedure For Diagnostic Mode [Car-Navigation System]

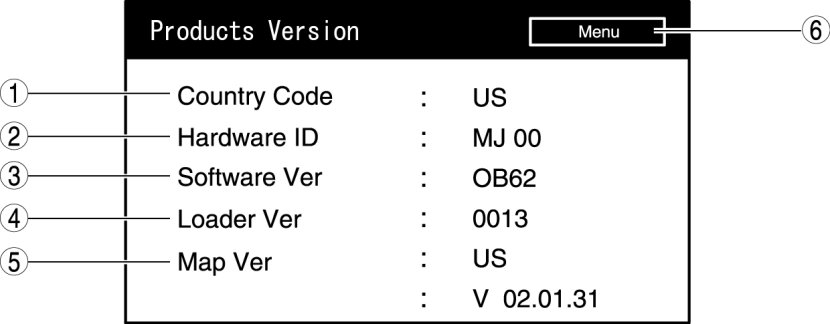

3. Select "Products Version".

4. Verify each version.

5. To stop the on-board diagnostic mode, switch the ignition to off.
