Clearing DTC [Car-Navigation System]




CLEARING DTC [CAR-NAVIGATION SYSTEM]

CAUTION:
- Before clearing the memory, be sure to enter all of the DTCs displayed in the on-board diagnostic test mode in the Audio Repair Order Form.

1. Launch the on-board diagnostic test mode. Starting Procedure For On-Board Diagnostic Test Mode [Car-Navigation System]

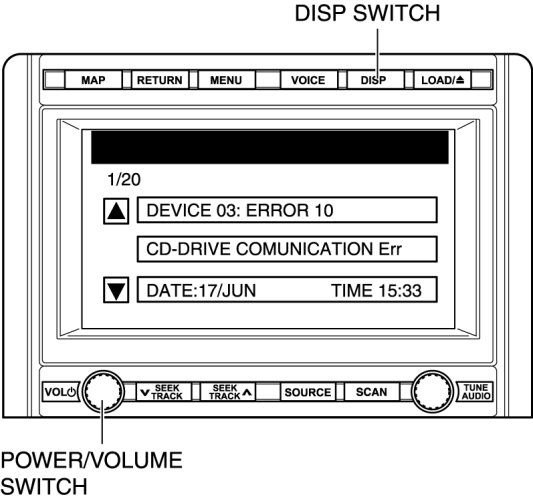

2. While pressing the POWER/VOLUME switch, simultaneously press the DISP switch for 200 ms or more.






3. To stop the on-board diagnostic test mode, turn the ignition switch off.
