Voice Activation Microphone: Service and Repair

MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Side wall Side Wall Removal/Installation

b. Front console Front Console Removal/Installation

c. Center panel module (with audio unit) Center Panel Module Removal/Installation

d. Center panel (without audio unit) Center Panel Removal/Installation

e. Climate control unit (with car-navigation system) Climate Control Unit Removal/Installation [Full-Auto Air Conditioner]

f. Car-navigation unit (with car-navigation system) Service and Repair

g. Dashboard center panel Dashboard Center Panel Removal/Installation

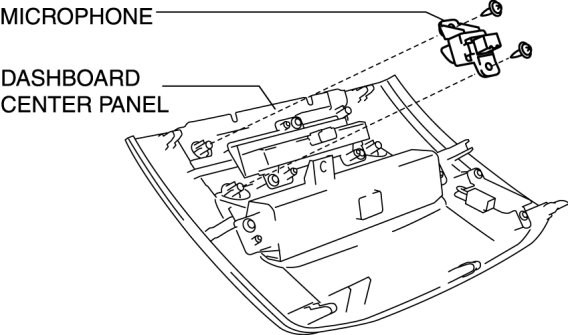

3. Remove the microphone.

4. Install in the reverse order of removal.
