Sliding Door Quarter Glass Removal/Installation




SLIDING DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully open the sliding door glass.

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable.

4. Remove the sliding door garnish.

5. Remove the side door garnish. Side Door Garnish Removal/Installation

6. Remove the rear side trim. Rear Side Trim Removal/Installation

7. Remove the sliding door trim. Service and Repair

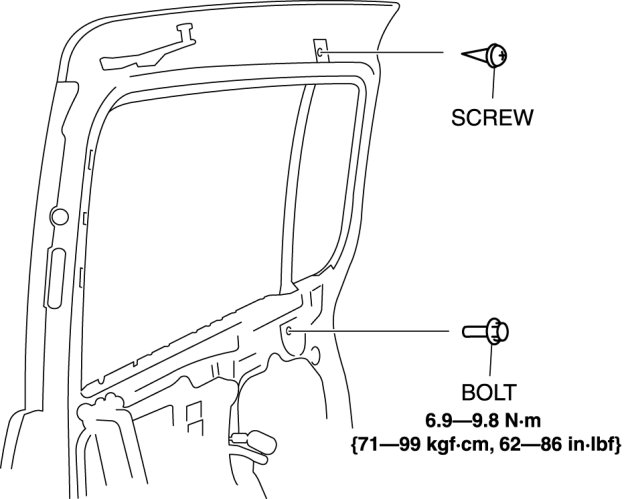

8. Remove the bolt and screw.

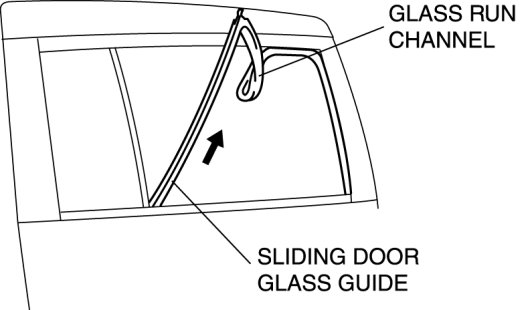

9. Remove the rear door glass guide and glass run channel as a single unit.






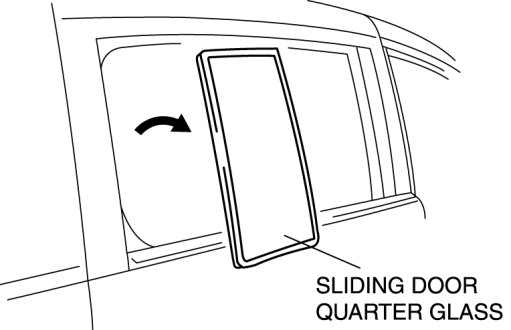

10. Remove the sliding door glass.






11. Install in the reverse order of removal.
