Oil Pan, Engine
Install the
oil pan and the bolts to the cylinder block.

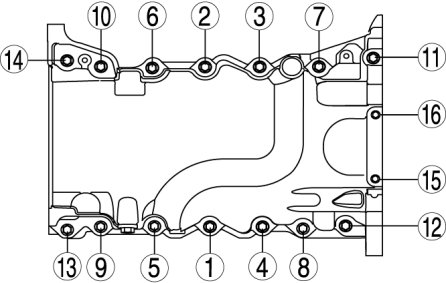

Tighten the bolts in the order shown in the figure.
Tightening torque
3.0 Nm {31 kgf-cm, 27 in-lbf}
Loosen the bolts
180°.
Tighten the bolts in the order shown in the figure.

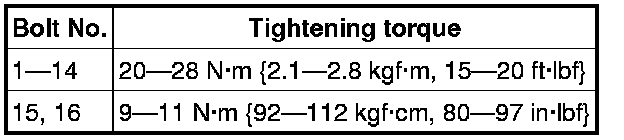

Tightening torque
