Torque Converter Outline
TORQUE CONVERTER OUTLINE ^

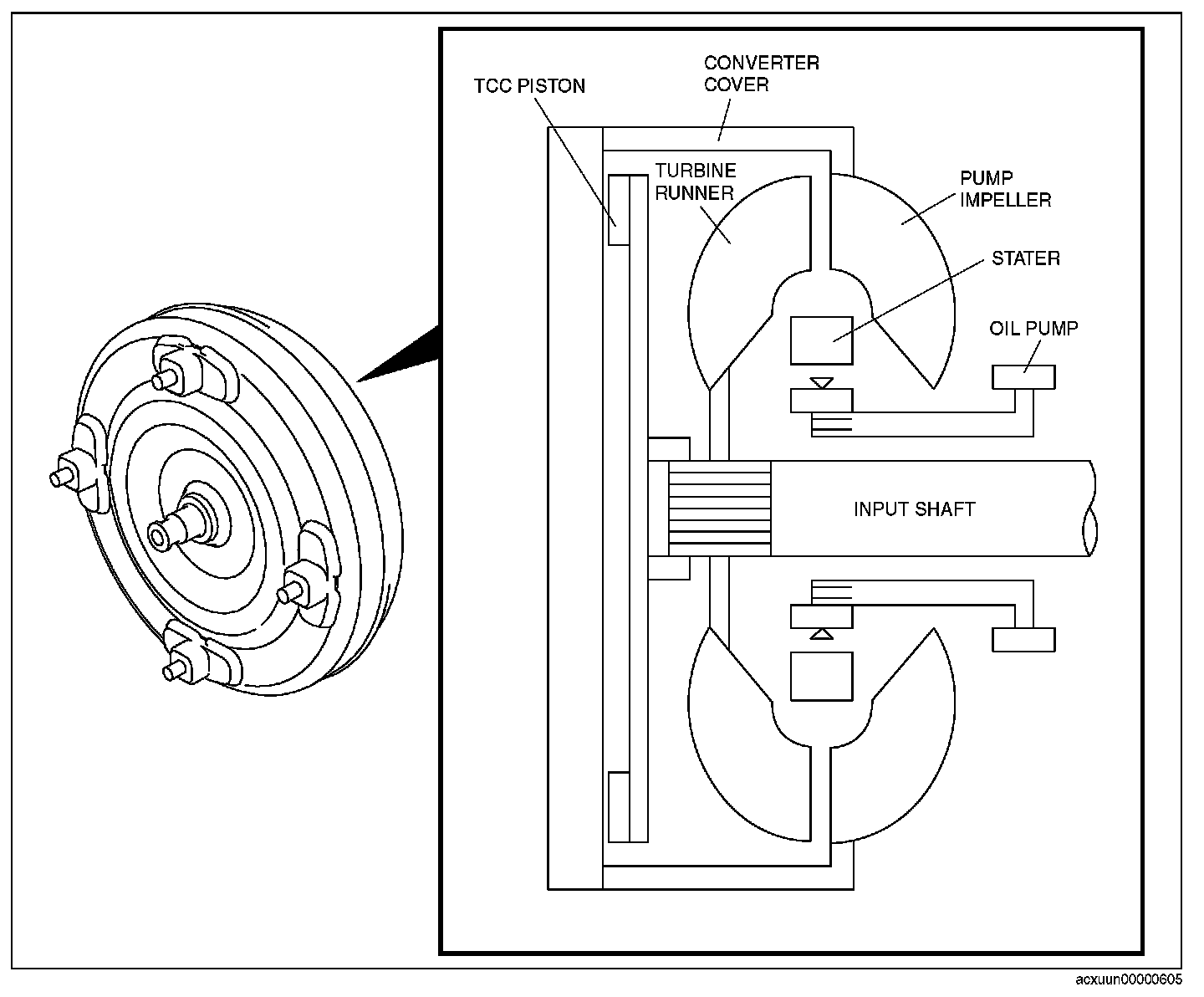

The torque converter is composed of the converter cover, pump impeller, turbine runner, stator, one-way clutch, and TCC. The torque converter transmits and amplifies torque by means of the ATF inside it. In addition, the use of the TCC is intended to improve fuel economy as a direct coupling between the engine and automatic transaxle.
