A/C Compressor Bracket Removal / Installation



-
A/C COMPRESSOR BRACKET REMOVAL / INSTALLATION - 4.0L

1. Remove the A/C compressor. See - A/C Compressor Removal / Installation.

2. Remove the power steering pump from the A/C compressor bracket. See - Power Steering Pump.

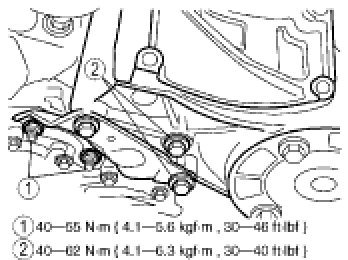

3. Remove the A/C compressor bracket.






a. Loosen the nuts.

b. Remove the bolts and remove the bracket.

4. To install, reverse the removal procedure.
