EGR Electronic Vacuum Regulator Solenoid: Service and Repair

-
EXHAUST GAS RECIRCULATION (EGR) VACUUM REGULATOR SOLENOID REMOVAL / INSTALLATION - 4.0L

1. Disconnect the battery ground cable. See Procedures.

1. Disconnect the electrical connector and the vacuum lines from the exhaust gas recirculation (EGR) vacuum regulator solenoid.

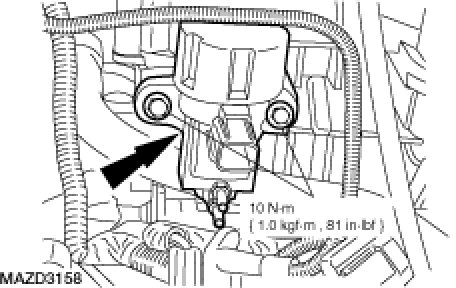

1. Remove the retaining bolts and the EGR vacuum regulator solenoid.

2. To install, reverse the removal procedure.
