Ignition Coil Removal / Installation



-
IGNITION COIL REMOVAL / INSTALLATION - 4.0L

1. Disconnect the negative battery cable. See Procedures.

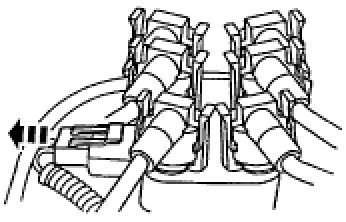

2. Disconnect the ignition coil electrical connectors.






3.

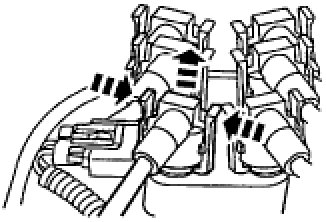

CAUTION:It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.
NOTE:Spark plug wires must be connected to the correct ignition coil terminal. Mark spark plug wire locations before removing.
Remove the spark plug wires.






4.

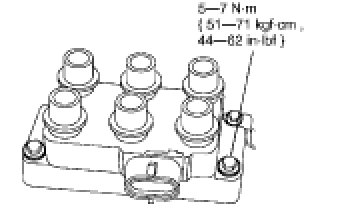

NOTE:Wipe the coil towers with a clean cloth dampened with soap and water.Remove the bolts and remove the ignition coil.






5.
NOTE:Apply a silicone dielectric compound to the inside of the spark plug wire coil boots.
NOTE:Be sure to reinstall the radio ignition interference capacitor under the correct ignition coil mounting bolt.
To install, reverse the removal procedure.
