Cylinder Head Assembly

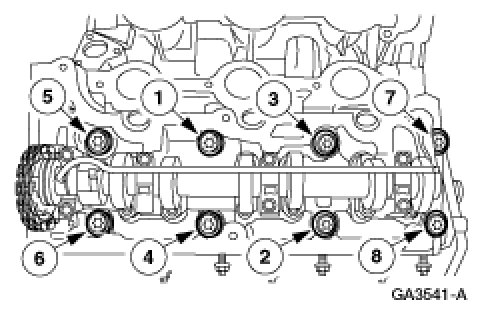

LH cylinder headNOTE:Cylinder head bolts are a torque-to-yield design. New bolts must be installed.Install the eight 12 mm (0.47 in) bolts and tighten in the sequence shown in two stages.
- Stage 1: 12 Nm {1.2 kgf-m, 9 ft-lbf}
- Stage 2: 25 Nm {2.5 kgf-m, 18 ft-lbf}

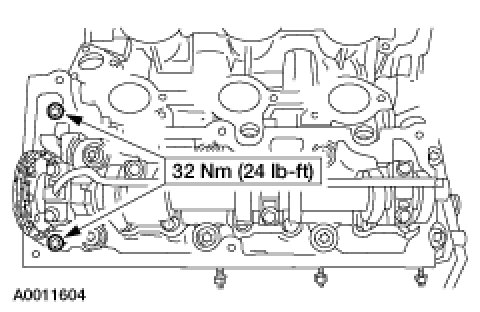

Install the two 8 mm (0.31 in) bolts.
Tighten the eight 12 mm (0.47 in) bolts in two stages in the sequence shown.
- Stage 1: Tighten the bolts 90 degrees.
- Stage 2: Tighten the bolts an additional 90 degrees.
RH cylinder head
NOTE:Cylinder head bolts are a torque-to-yield design. New bolts must be installed.Install the eight 12 mm (0.47 in) bolts and tighten in the sequence shown in 2 stages.
- Stage 1: 12 Nm {1.2 kgf-m, 9 ft-lbf}
- Stage 2: 25 Nm {2.5 kgf-m, 18 ft-lbf}
Install the two 8 mm (0.31 in) bolts.
Tighten the eight 12 mm (0.47 in) bolts in two stages in the sequence shown.
- Stage 1: Tighten the bolts 90 degrees.
- Stage 2: Tighten the bolts an additional 90 degrees.

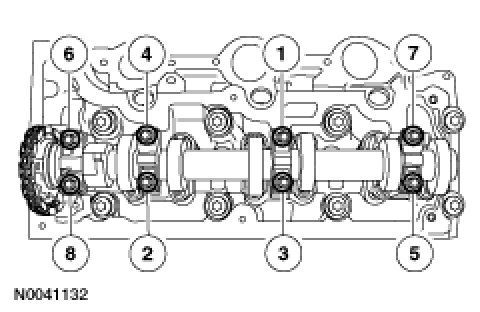

Camshft Bearing Caps
Tighten the bolts in the sequence shown in 2 stages.
Tightening Torque
Stage 1: 6 Nm {0.6 kgf-m, 53 in-lbf}
Stage 2: 16 Nm {1.6 kgf-m, 12 ft-lbf}
Intake Manifold Specifications
Exhaust Manifold Specifications

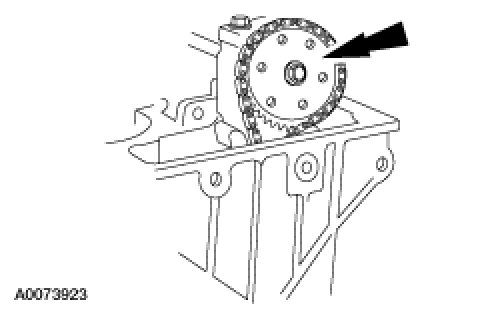

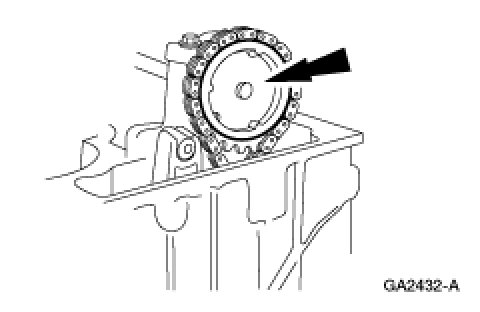

Camshaft Sprocket Specifications
