Timing Cover

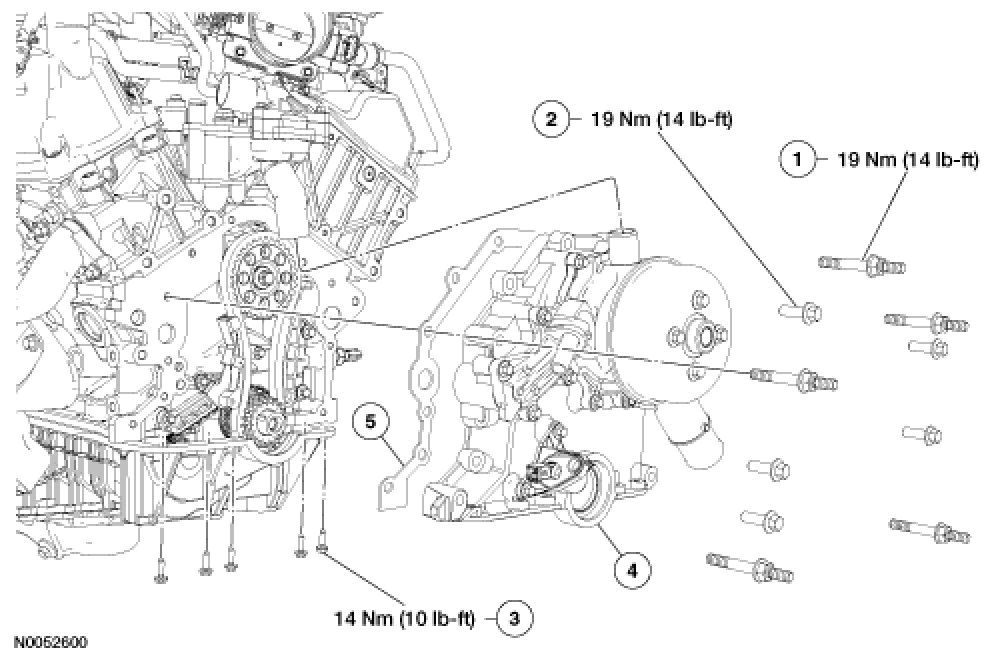

Timing CoverPosition the engine front cover and install the 5 bolts and 5 stud bolts.
Tightening Torque
19 Nm {1.9 kgf-m, 14 ft-lbf}
Install the 5 cylinder block cradle-to-front cover bolts.
The 5 bolts may or may not have washers. All the bolts should be of the same type.
Tightening Torque With washers:
10 Nm {1.0 kgf-m, 89 in-lbf}
Without washers:
14 Nm {1.4 kgf-m, 10 ft-lbf}
