Flywheel Inspection
-
FLYWHEEL INSPECTION - 4.0L1. Inspect the
flywheel for:
-
Cracks
-
Worn ring gear teeth
-
Chipped or cracked ring gear teeth

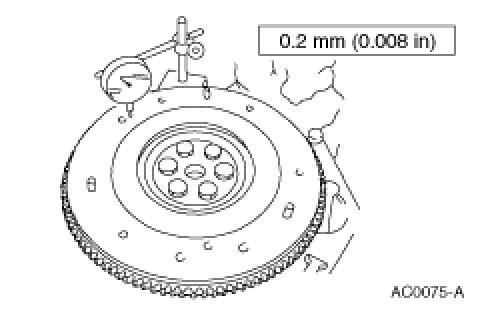

2. Use radial runout gauge to inspect the
flywheel ring gear runout.
-
Set the gauge on the
flywheel ring gear surface and turn the flywheel to measure runout.
