Headliner: Service and Repair




HEADLINER REMOVAL/INSTALLATION

1. Remove the following parts:
a. Weatherstrip Service and Repair

b. Roof side trim Roof Side Trim Removal/Installation

c. Sunroof seaming welt (vehicles with sunroof)

d. A-pillar trim A-Pillar Trim Removal/Installation

e. Rear seat Rear Seat Removal/Installation

f. Inner scuff plate Inner Scuff Plate Removal/Installation

g. Tire house trim Tire House Trim Removal/Installation

h. Rear pillar trim Rear Pillar Trim Removal/Installation

i. Map light Service and Repair

j. Interior light Interior Light Removal/Installation

k. Sunvisor Service and Repair

l. Assist handle Service and Repair

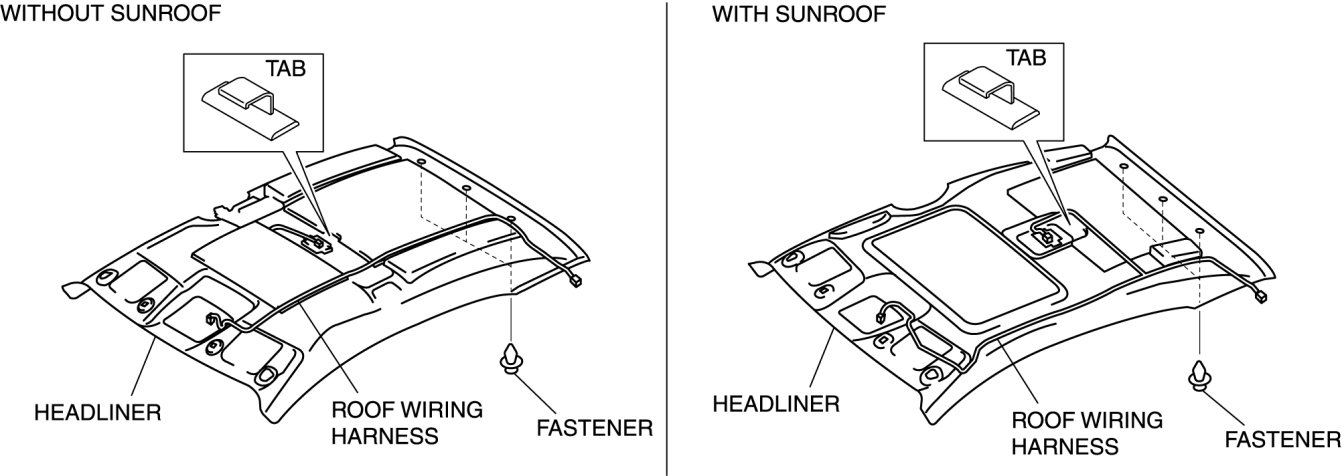

2. Disconnect the roof wiring harness connector and remove the roof wiring harness connector clip from the body.

3. Remove the fasteners.






4. Detach the tab from the roof panel and remove the headliner.

5. Take the headliner out from the opened passenger-side door.

6. Install in the reverse order of removal.
