Headlamp Switch: Service and Repair

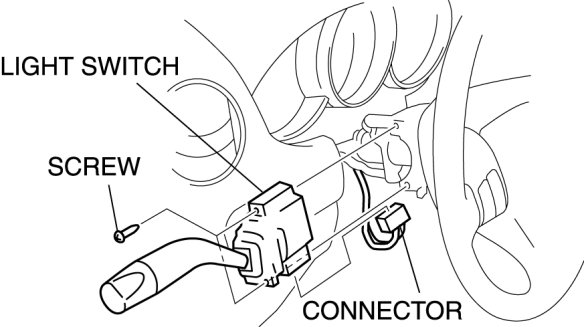

LIGHT SWITCH REMOVAL/INSTALLATION1. Disconnect the negative battery cable.
2. Remove the column cover.
Service and Repair3. Remove the ignition key illumination. (Vehicles with keyless entry system)
Service and Repair4. Disconnect the connector.
5. Remove the screws and then remove the light switch.
6. Install in the reverse order of removal.
