Fluid - M/T: Service and Repair

TRANSMISSION OIL REPLACEMENT [P66M-D]

1. Position the vehicle on level ground.

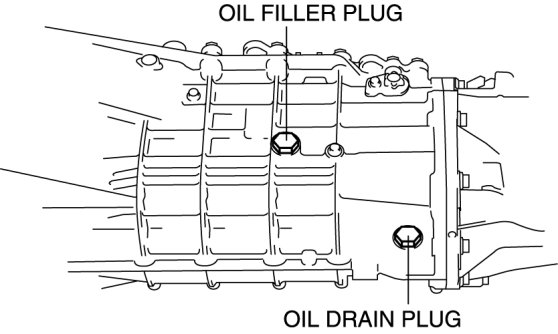

2. Remove oil filler plug and drain plug, and then drain the oil.






3. Clean drain plug.

4. Install drain plug and a new washer.

Tightening torque
- 40-59 Nm {4.1-6.0 kgf-m, 30-43 ft-lbf}

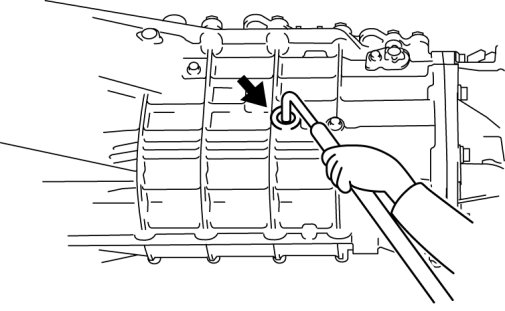

5. Add the specified amount and type of oil through the plug port for oil filler plug to near the brim of the port.






Transmission case specified oil grade
- API Service GL-4

Transmission case specified oil viscosity
- SAE 75W-90

Transmission case capacity (approx. quantity)
- 1.95 L {2.06 US qt, 1.72 lmp qt}

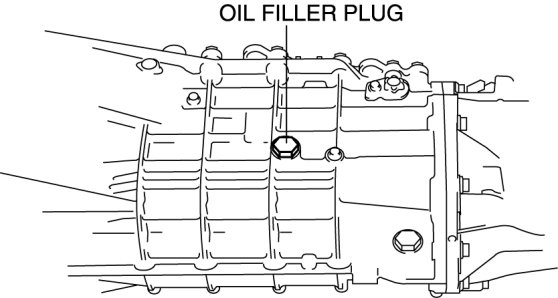

6. Install oil filler plug and a new washer.






Tightening torque
- 40-59 Nm {4.1-6.0 kgf-m, 30-43 ft-lbf}
