Headlamp Washer Pump: Service and Repair

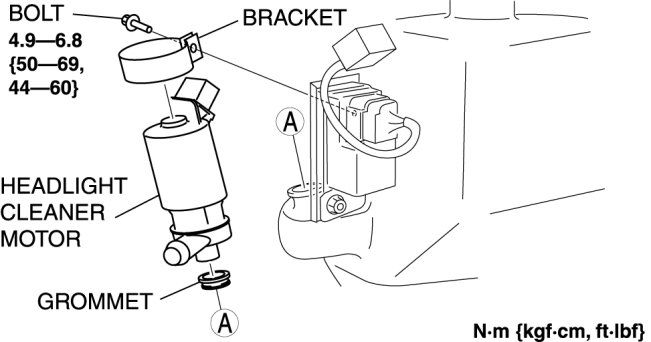

HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the windshield washer tank.
Service and Repair 3.
Remove the bolt, then remove the bracket.
4.
Remove the headlight cleaner motor, then remove the grommet.
5.
Install in the reverse order of removal.
