Removal and Replacement
WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION 1.
Remove the cowl grille.
Service and Repair 2.
Remove the
windshield washer hose from the windshield washer nozzle.
Service and Repair 3.

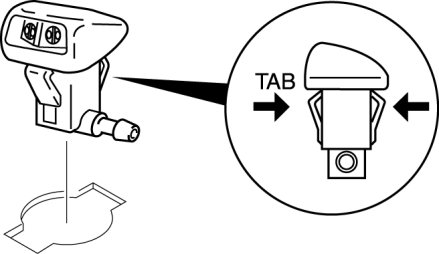

Squeeze the tabs of the windshield washer nozzle.
4.
Pull the windshield washer nozzle out to remove it.
5.
Install in the reverse order of removal.
