Air Duct: Service and Repair

REAR HEAT DUCT REMOVAL/INSTALLATION

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Front seat Front Seat Removal/Installation

b. Center console Center Console Removal/Installation

c. Front scuff plate inner Front Scuff Plate Removal/Installation

d. Front side trim Front Side Trim Removal/Installation

e. Side wall Side Wall Removal/Installation

f. Shift lever component (MTX) Service and Repair

g. Selector lever component (ATX) Service and Repair

h. Front console Front Console Removal/Installation

i. Dust cover Service and Repair

4. Partially open the floor covering. Service and Repair

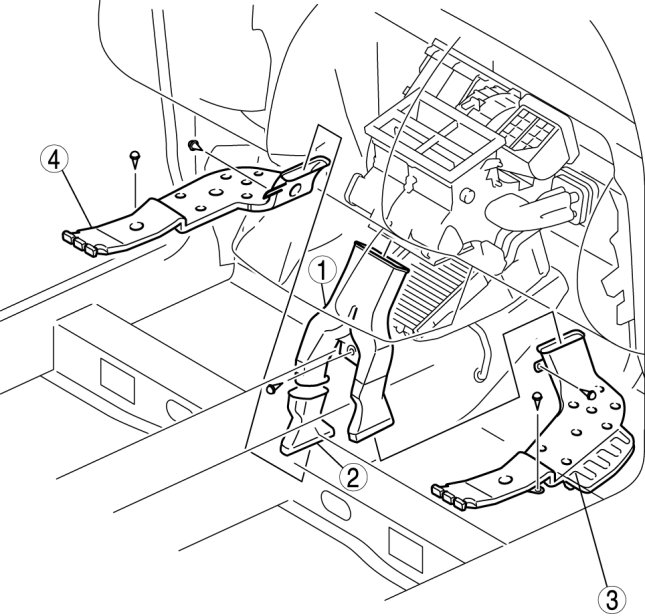

5. Remove in the order indicated in the table.










6. Install in the reverse order of removal.
