Brake Pad: Service and Repair




DISC PAD (FRONT) REPLACEMENT

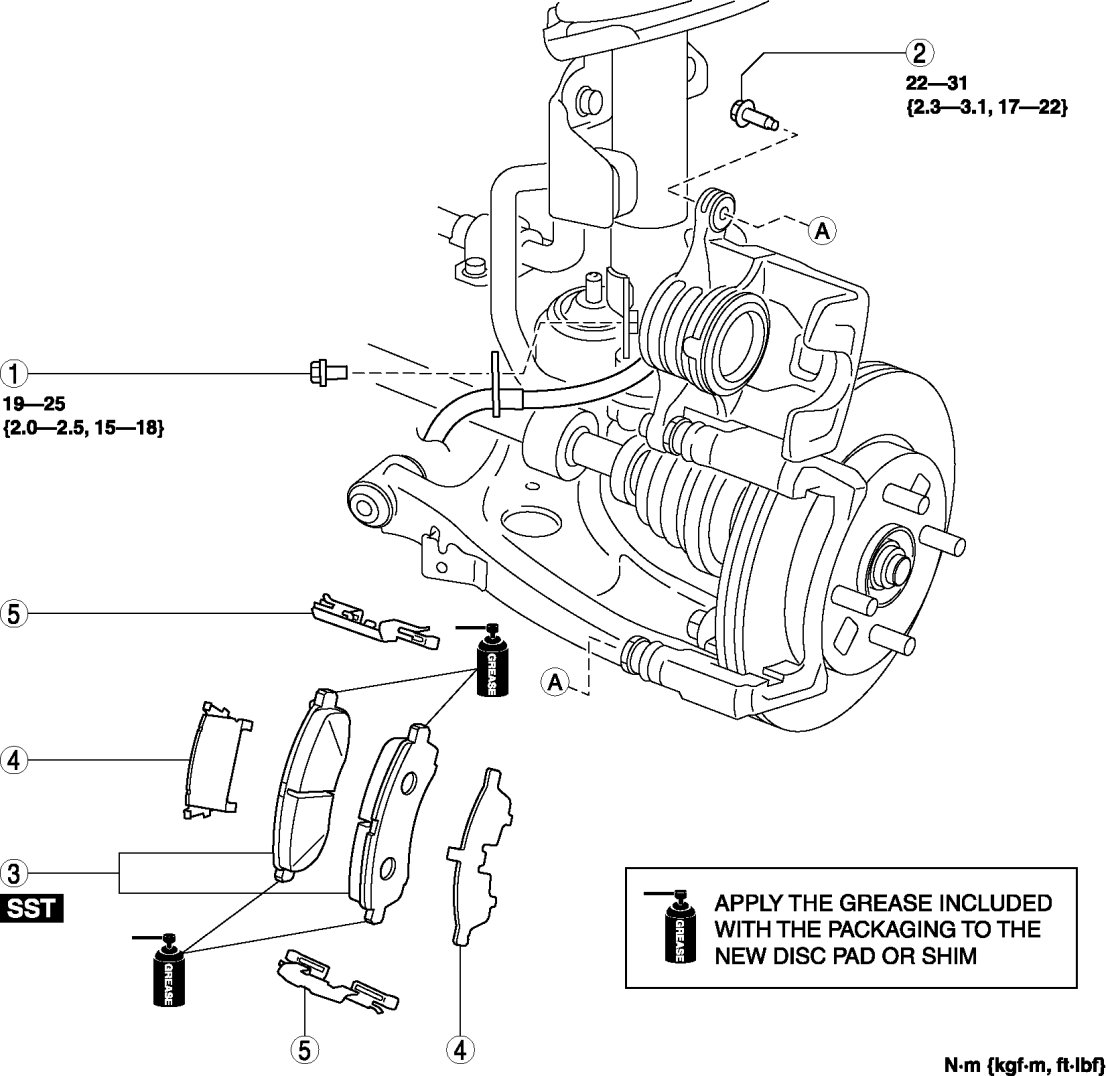

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, pump the brake pedal a few times and verify that the brakes do not drag.









Disc Pad Installation Note

NOTE:
- Press fit the piston before installing the disc pads to the mounting support.

1. Thoroughly clean the exposed area of the piston.

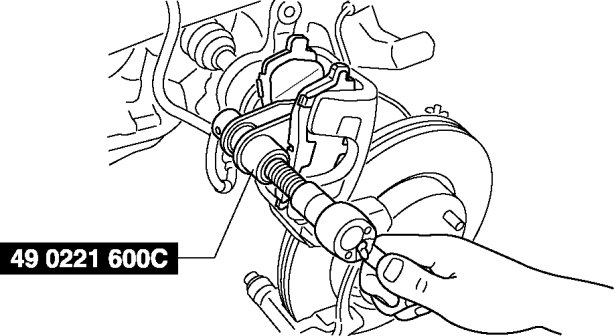

2. Set up the disc pads and the SST.






3. Press fit the piston using the SST.

4. Apply the grease included with the packaging for a new disc pad or shim to the areas in which the guide plate of the disc pad comes into contact.

5. Install the disc pads to the mounting support.
NOTE:
- Install the disc pad with the pad wear indicator to the inner side of the mounting support.
