Brake Rotor/Disc: Service and Repair

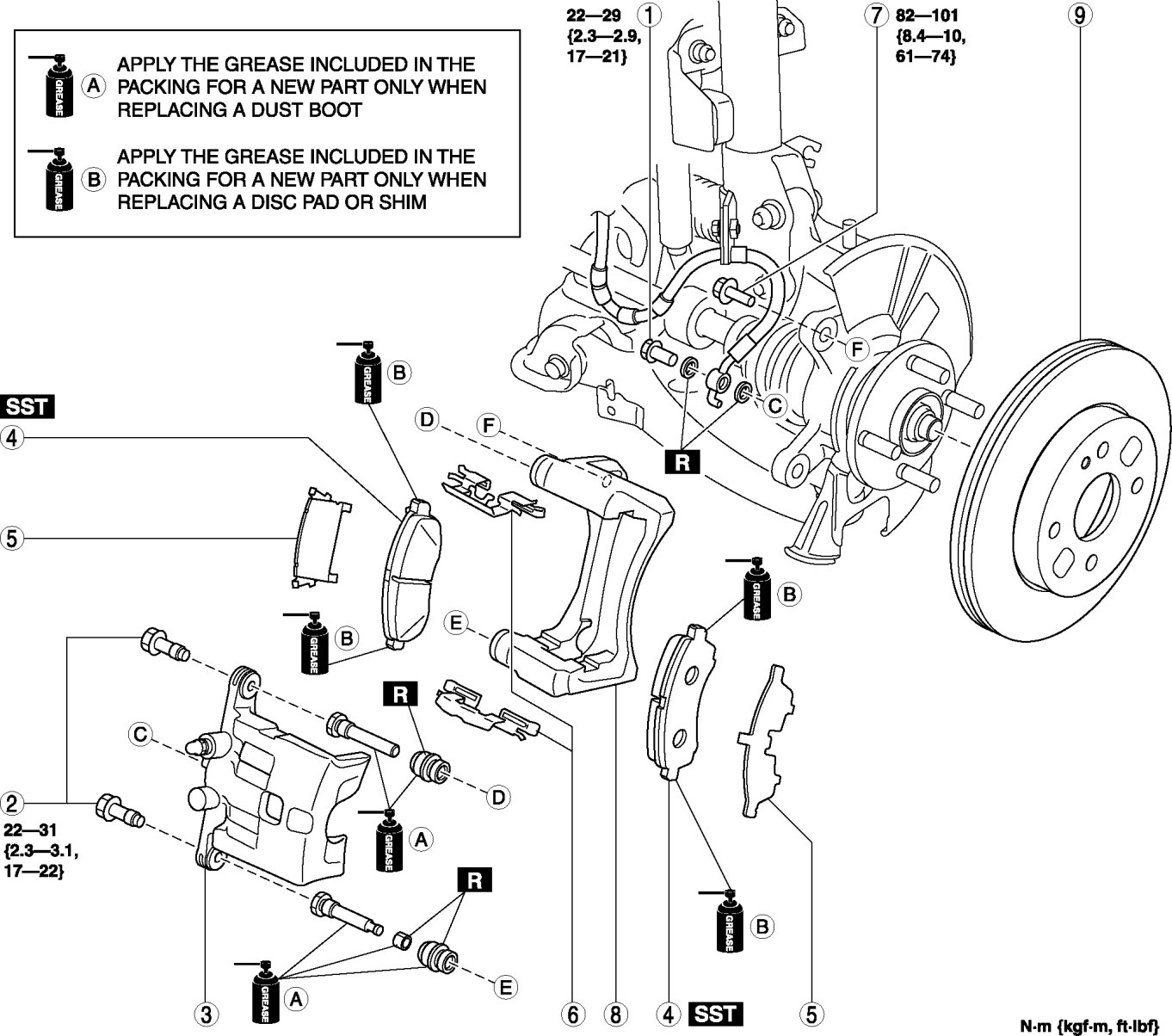

FRONT BRAKE (DISC) REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Add brake fluid, bleed the brakes, and inspect for leakage after the installation has been completed. Service and Repair

4. After installation, pump the brake pedal a few times and verify that the brakes do not drag.









Disc Pad Installation Note

NOTE:
- Press fit the piston before installing the disc pads to the mounting support.

1. Thoroughly clean the exposed area of the piston.

2. Set up the disc pads and SST.

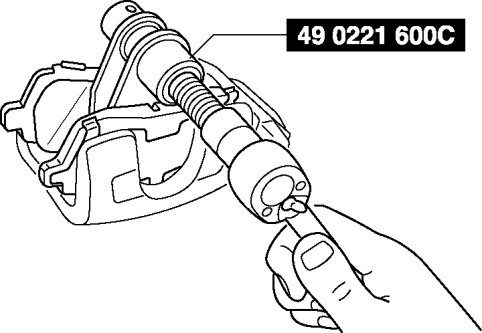

3. Press fit the piston using the SST.

4. Use the grease included with the packaging only when replacing a disc pad or shim, and apply it to the areas in which the guide plate of the disc pad comes into contact.

5. Install the disc pads to the mounting support.
NOTE:
- Install the disc pad with the pad wear indicator to the inner side of the mounting support.
