Brake Fluid Level Sensor/Switch: Testing and Inspection
BRAKE FLUID LEVEL SENSOR INSPECTION 1.
Disconnect the connector from the brake fluid level sensor.
2.

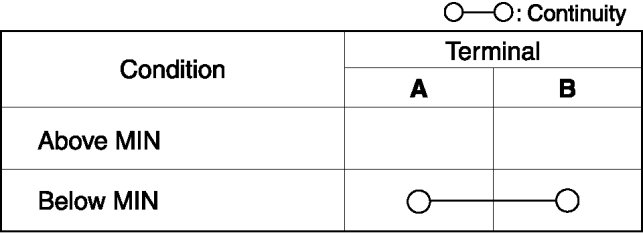

Inspect for continuity between the brake fluid level sensor terminals.
-
If not as indicated in the table, replace the Master cylinder component.
