Valve Guide: Service and Repair
VALVE GUIDE REPLACEMENTRemoval 1.

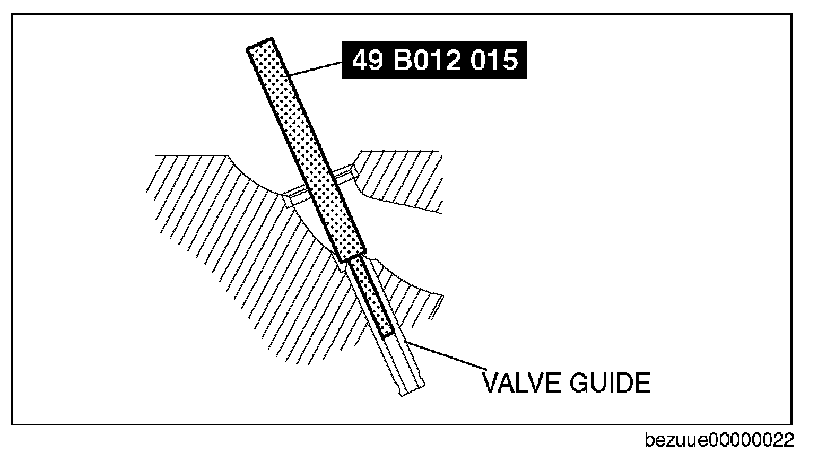

Remove the
valve guide from the combustion chamber side using the SST.
Installation 1.

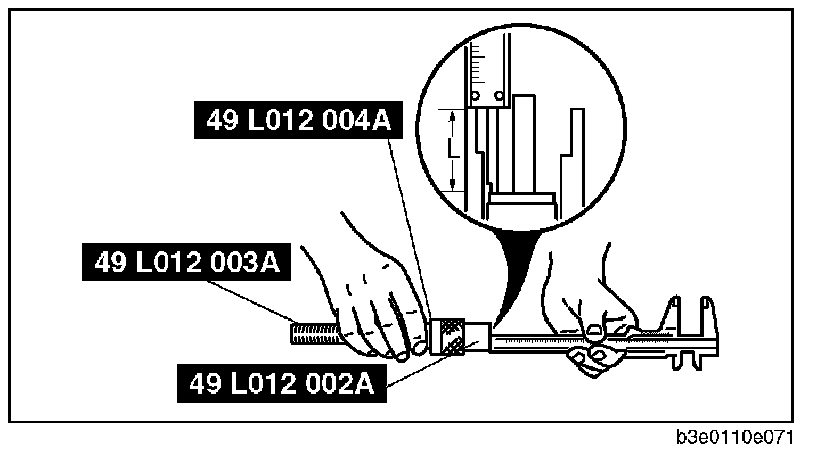

Assemble the SSTs so that depth L is as specified.
Depth L: 12.2-12.8 mm {0.481-0.503 in} 2.

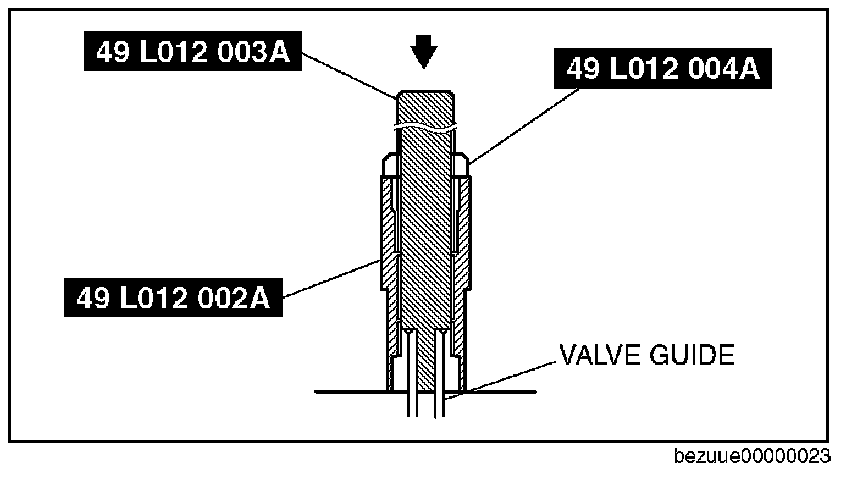

Tap the
valve guide in from the
camshaft side using the SSTs set in Step 1.
