Blower Motor: Service and Repair

BLOWER MOTOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear console Rear Console Removal/Installation

b. Shift lever knob (MTX) Service and Repair

c. Side wall Side Wall Removal/Installation

d. Front console component Front Console Component Removal/Installation

e. Front scuff plate (LH) Front Scuff Plate Removal/Installation

f. Front side trim (LH) Front Side Trim Removal/Installation

g. Hood release lever Service and Repair

h. Lower panel (driver-side) Lower Panel Removal/Installation

i. Knee bolster Knee Bolster Removal/Installation

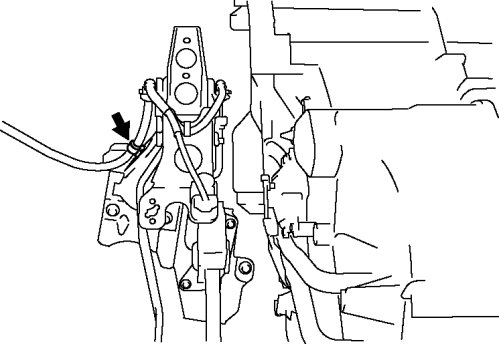

3. Remove the wiring harness clip from the brake pedal.

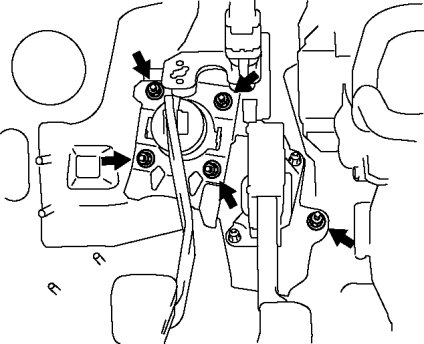

4. Remove the brake pedal installation nuts.

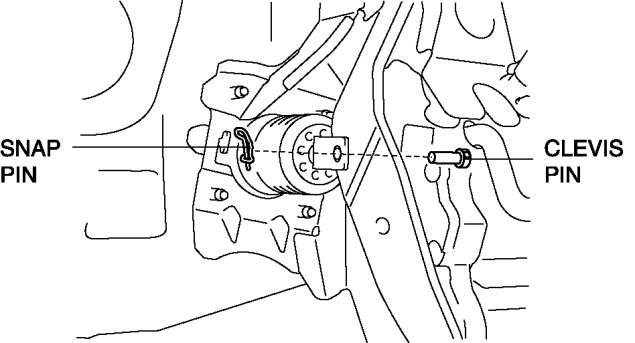

5. Remove the snap pin and clevis pin.

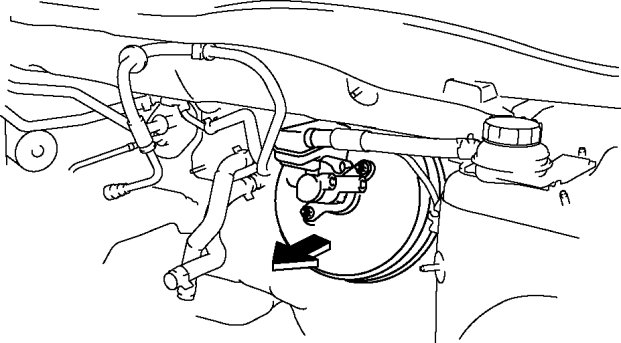

6. Pull the power brake unit from the engine compartment side.

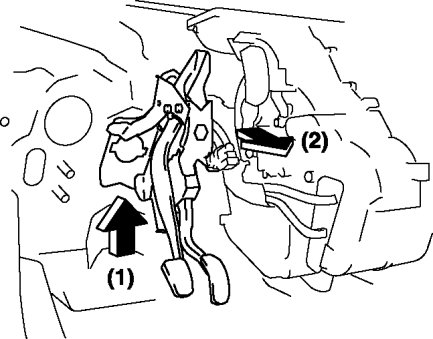

7. Pull the brake pedal outward while lifting it.






CAUTION:
- When removing/installing the blower motor due to a motor rotation malfunction, be careful that the sirocco fan does not interfere with other parts.

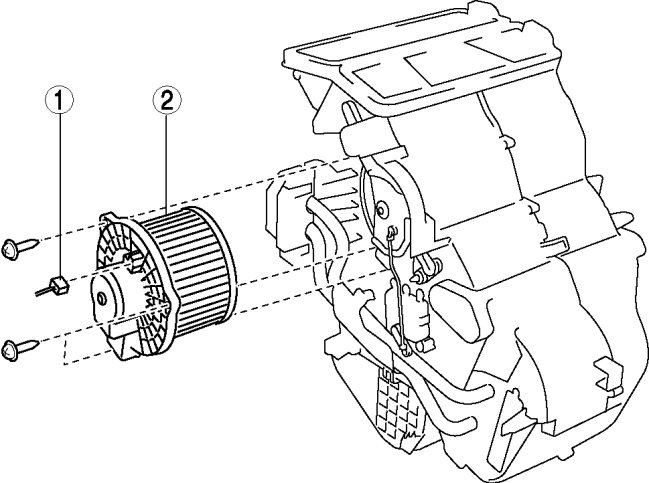

8. Remove in the order indicated in the table.










9. Install in the reverse order of removal.
