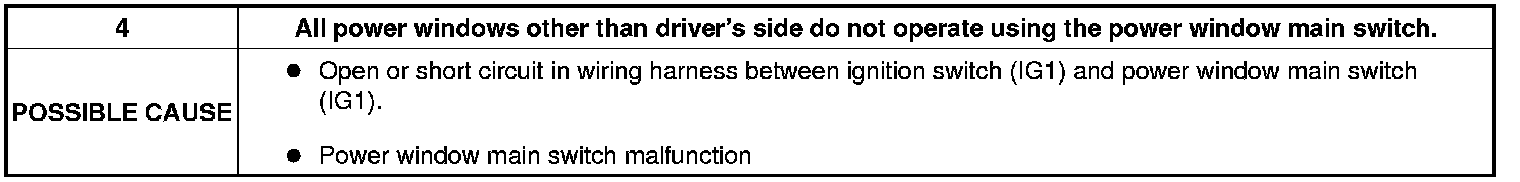

No. 4 All Power Windows Other Than Driver's Side Do Not Operate Using The Power Window Main Switch
No.4 ALL POWER WINDOWS OTHER THAN DRIVER'S SIDE DO NOT OPERATE USING THE POWER WINDOW MAIN SWITCH [POWER WINDOW SYSTEM]

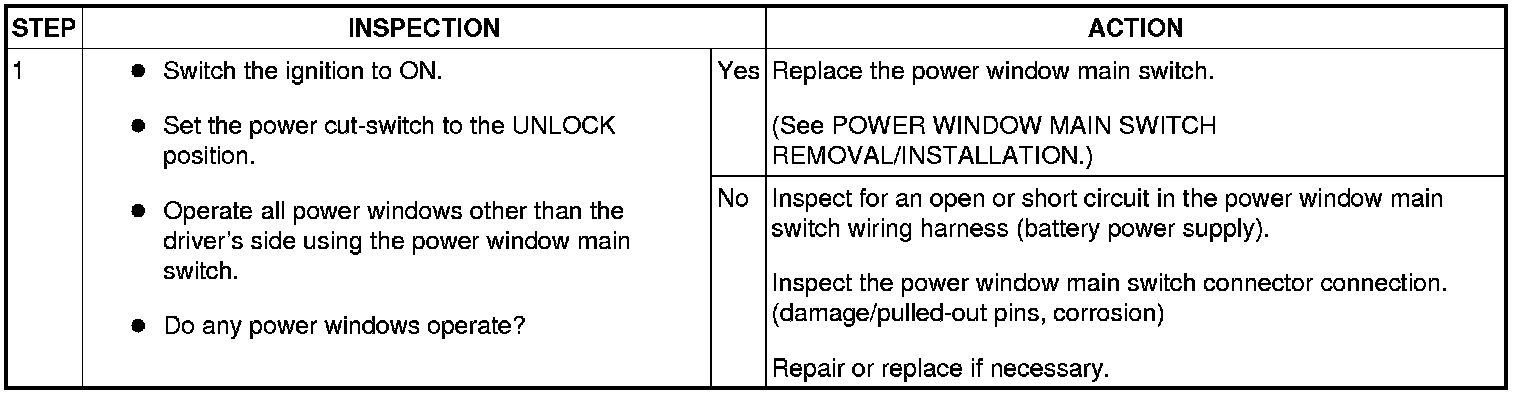

Diagnostic procedure
