Rear Washer Hose Removal/Installation

REAR WASHER HOSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the mudguard on the left side. Service and Repair

3. Disconnect the rear washer hose from the washer motor.

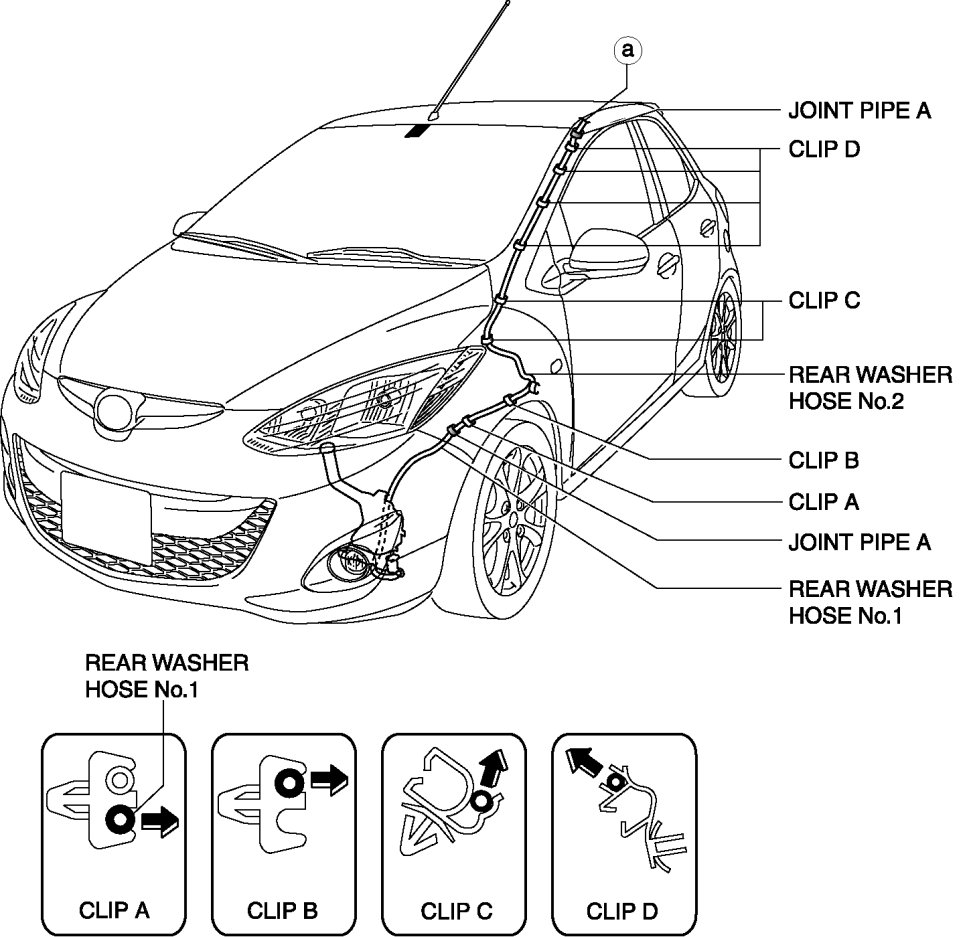

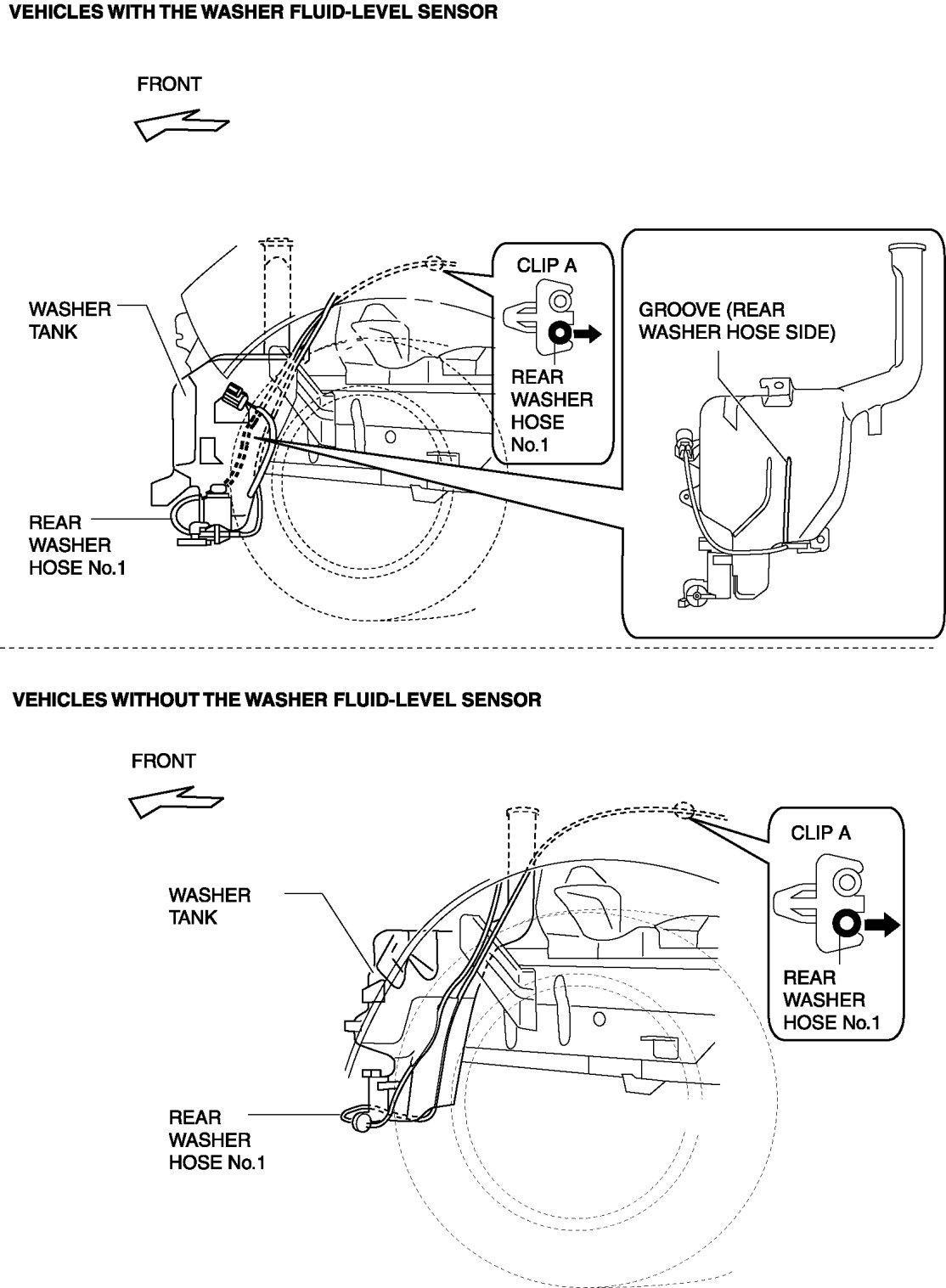

4. Remove rear washer hose No.1 from clip A.






5. Remove the A-pillar trim on the left side. A-Pillar Trim Removal/Installation

6. Remove the glove compartment. Service and Repair

7. Remove rear washer hose No.2 from clips B, C, and D.

8. Remove rear washer hose No.2 and joint pipe B.

9. Remove the following parts:
a. Front scuff plate Front Scuff Plate Removal/Installation

b. Rear scuff plate Rear Scuff Plate Removal/Installation

c. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

d. Front seat belt upper anchor installation bolt Front Seat Belt Removal/Installation

e. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

f. Rear seat back Rear Seat Back Removal/Installation

g. Rear seat cushion Rear Seat Cushion Removal/Installation

h. Trunk end trim Trunk End Trim Removal/Installation

i. Trunk side trim

j. C-pillar trim C-Pillar Trim Removal/Installation

k. Sunvisor Service and Repair

l. Rain sensor cover (vehicles with rain sensor) Service and Repair

m. Assist handle Service and Repair

10. Remove joint pipe C.

11. Remove the headliner. Headliner Removal/Installation

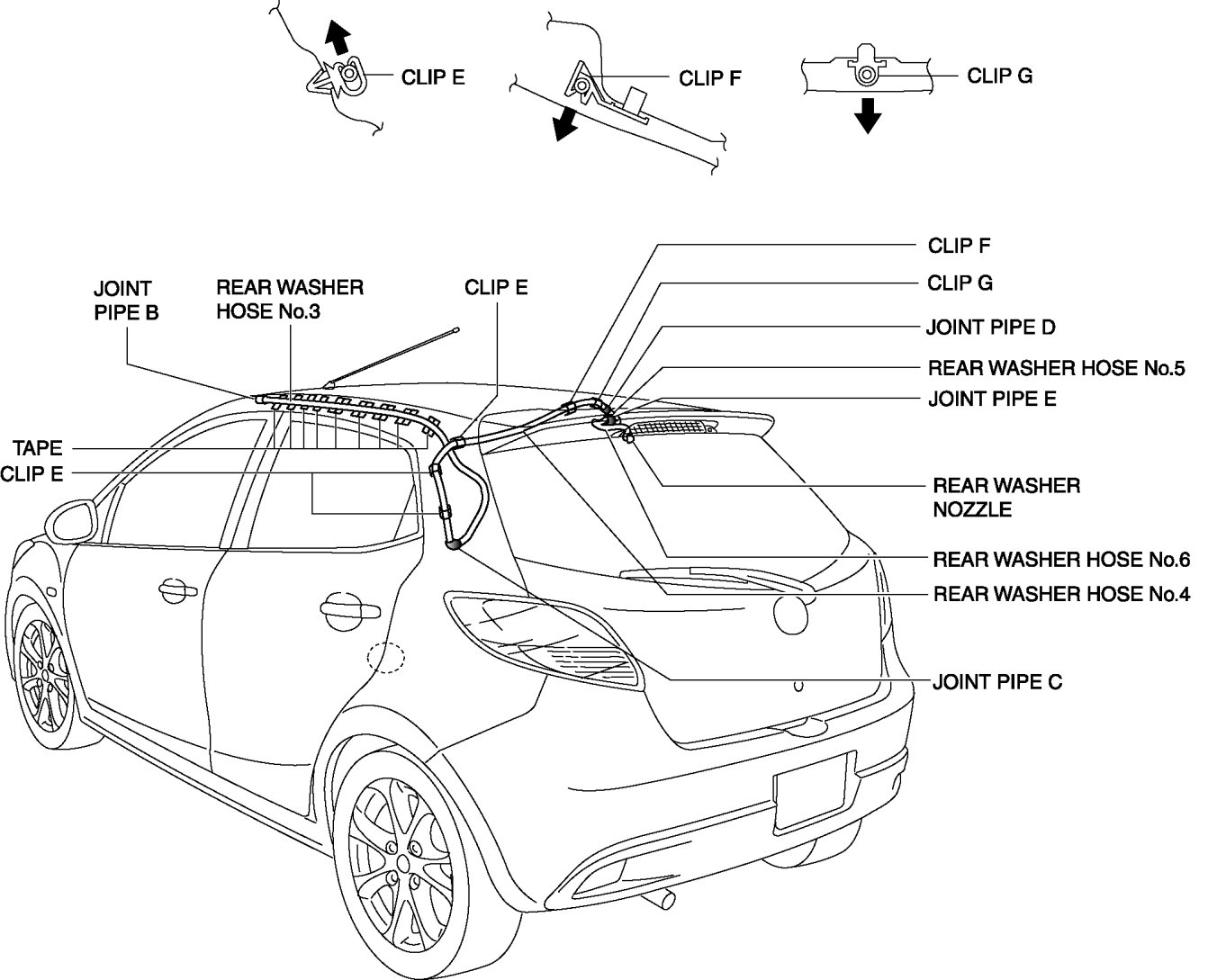

12. Peel off the tape and remove rear washer hose No.3.






13. Remove rear washer hose No.4 from clips E, F, and G.

14. Remove rear washer hose No.4 from joint pipe D.

15. Remove rear washer hose no.5 from joint pipe E.

16. Remove the rear washer nozzle. Rear Washer Nozzle Removal/Installation

17. Remove rear washer hose No.6.

18. Install in the reverse order of removal.
