Rear Oil Seal Assembly Note
Rear Oil Seal Assembly Note 1.
Apply clean engine oil to the new oil seal lip.
2.

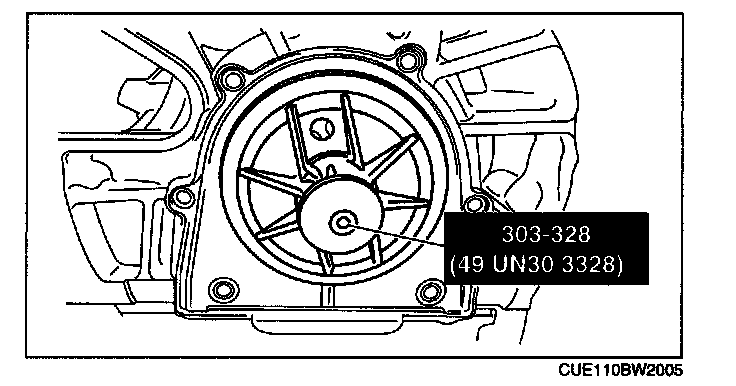

Install the rear oil seal using the SST as shown in the figure.
3.

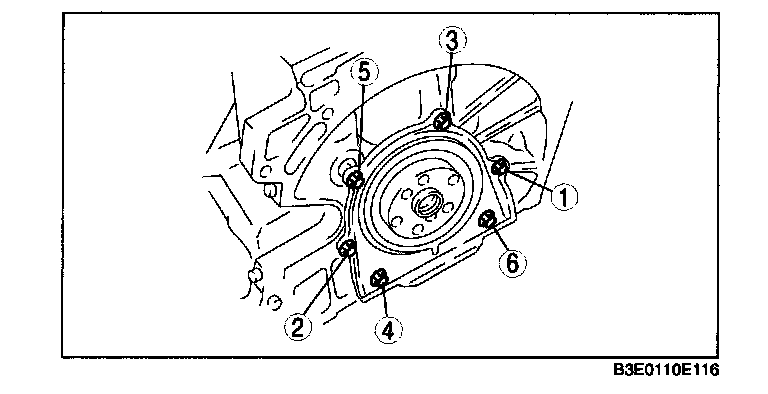

Tighten the rear oil seal bolts in the order as shown in the figure.
Tightening torque
8.0-11.5 N-m (81.6-117.2 kgf-cm, 70.9-101.7 In-lbf)
