Parking Brake Lever: Service and Repair

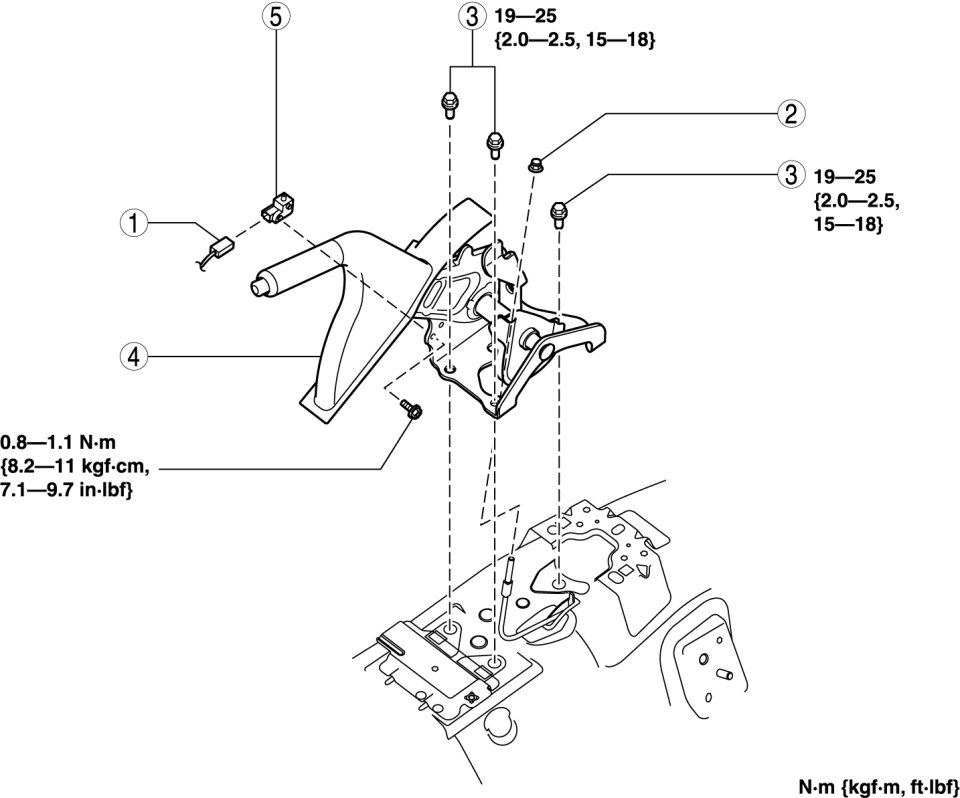

PARKING BRAKE LEVER REMOVAL/INSTALLATION 1.
Remove the upper panel.
Upper Panel Removal/Installation 2.
Remove in the order indicated in the table.
3.
Install in the reverse order of removal.
4.
After installation, inspect the
parking brake lever stroke.
Testing and Inspection
