Error Code 20

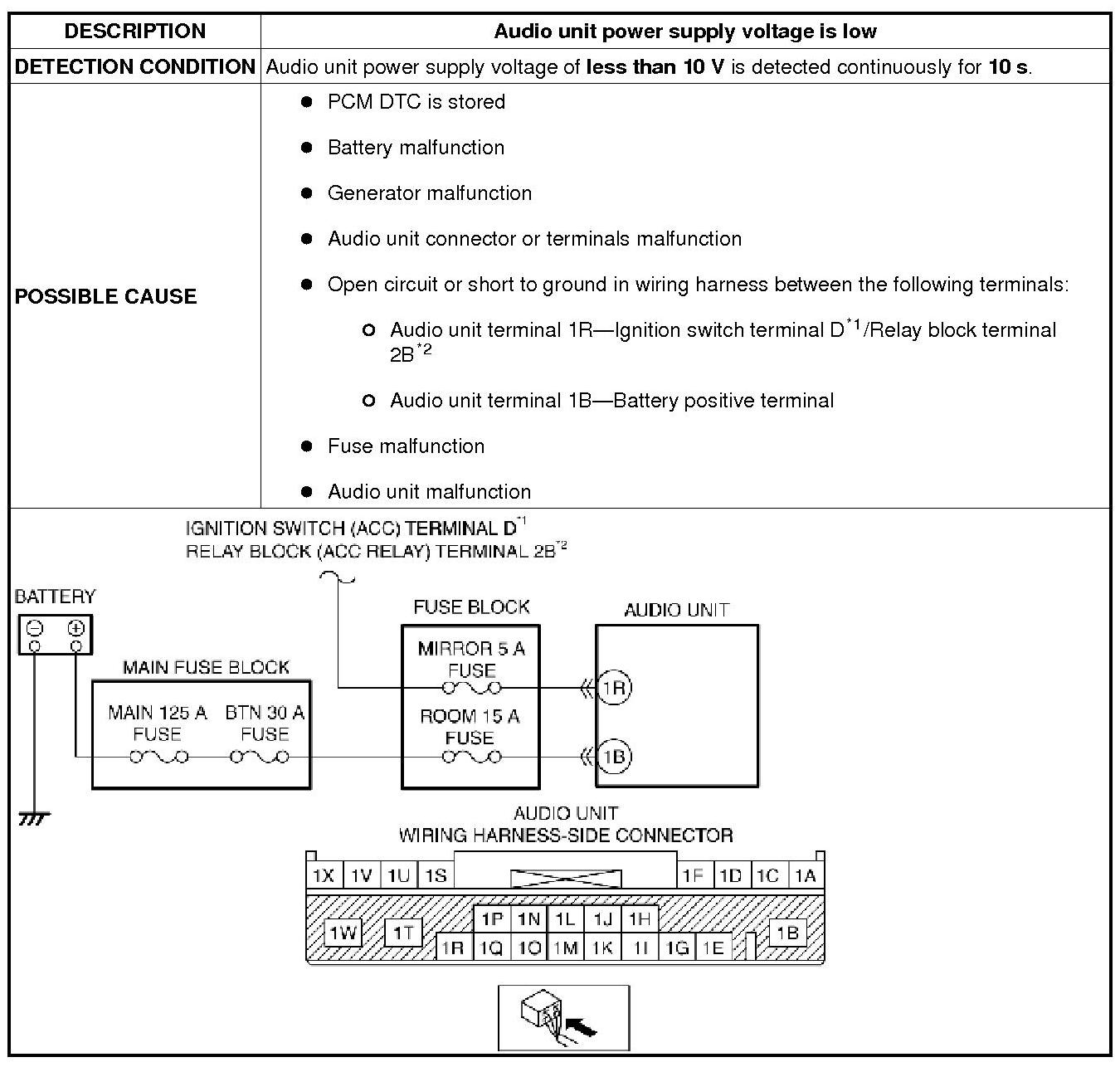

DTC: 09:Er20, DEVICE CODE 09/ERROR CODE 20 [AUDIO]

*1
:Vehicles without advanced keyless entry and push button start system
*2
:Vehicles with advanced keyless entry and push button start system

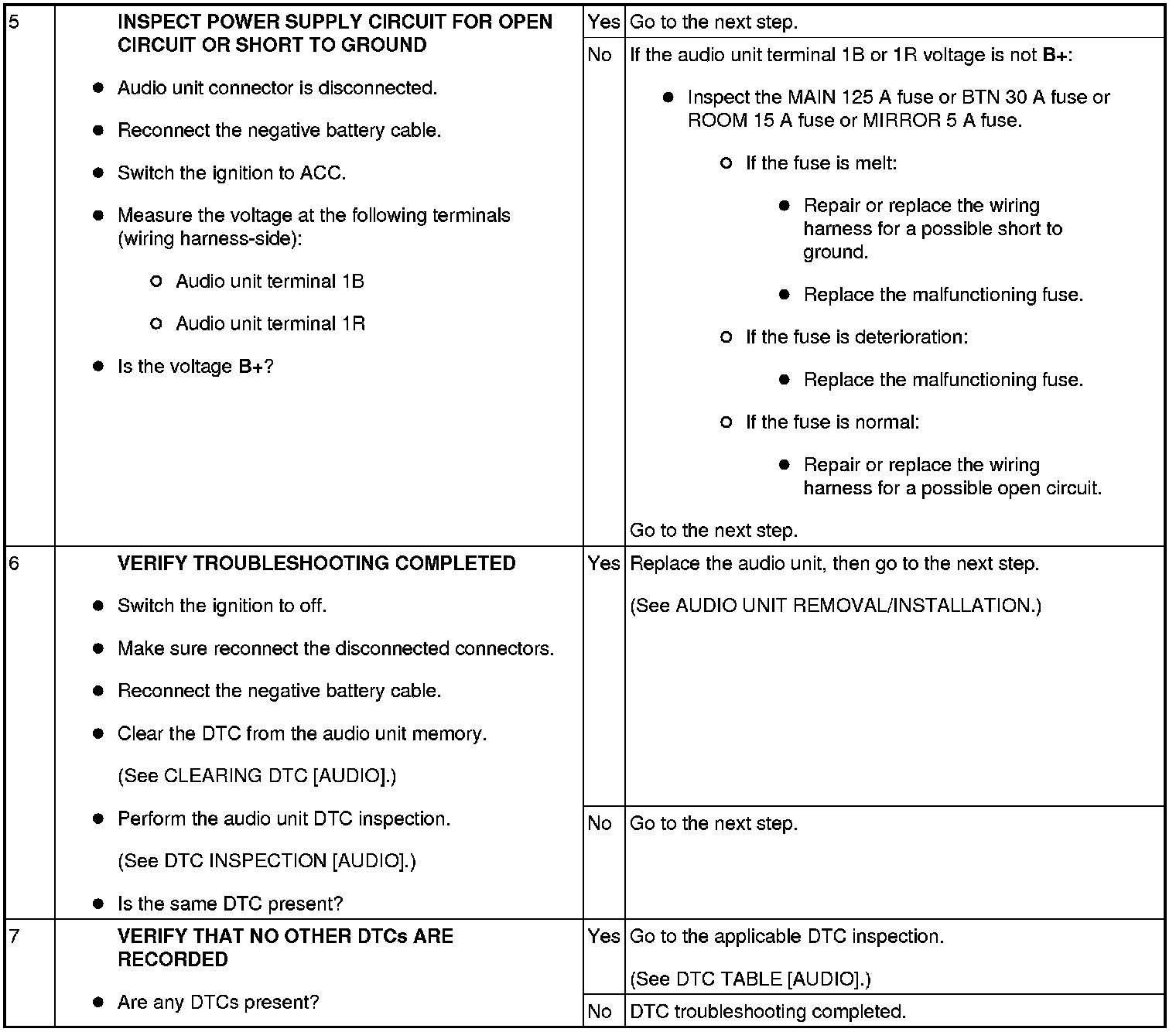

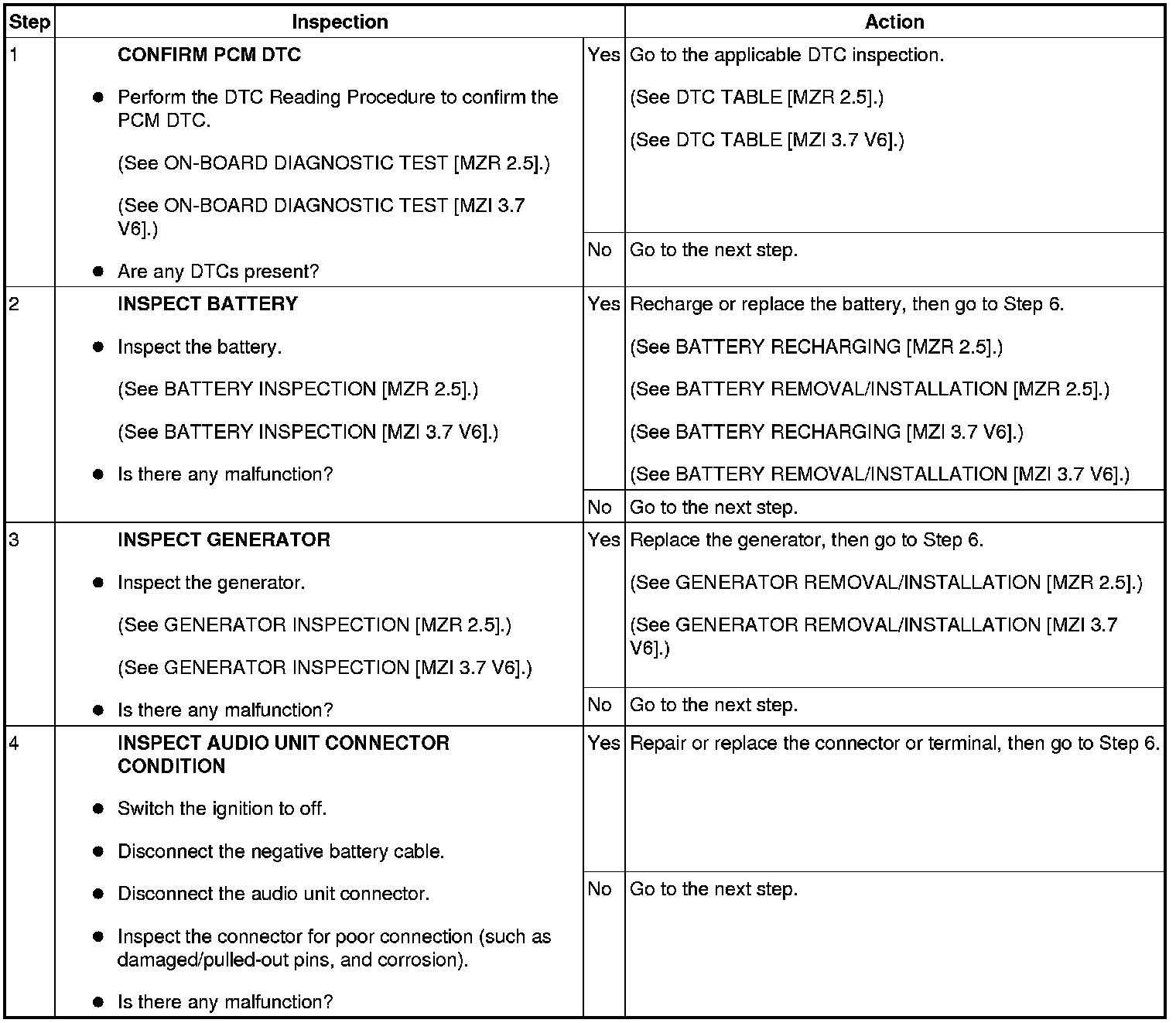

Diagnostic Procedure
