Auxiliary Input / Output Jack: Service and Repair




AUXILIARY JACK REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift knob (MTX) Service and Repair

c. Shift panel Shift Panel Removal/Installation

d. Decoration panel (See Decoration Panel Removal/Installation.)

e. Center panel lower Center Panel Lower Removal/Installation

f. Rear console Overhaul

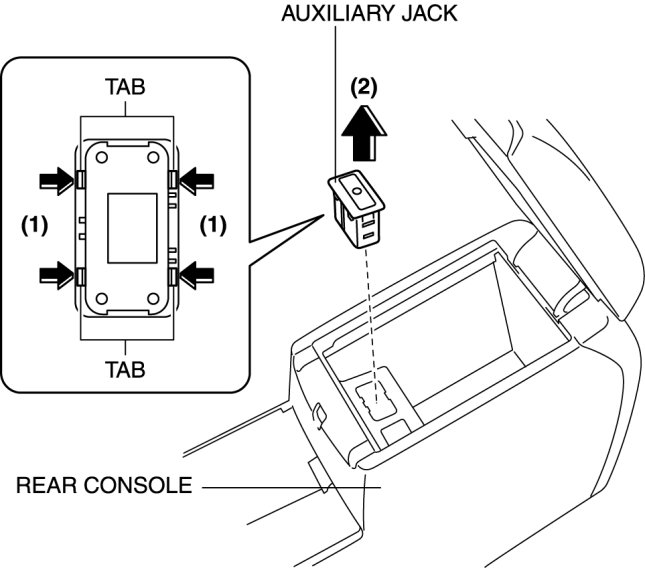

3. Remove the auxiliary jack in the direction of the arrow (2) shown in the figure while pressing the auxiliary jack tabs in the direction of the arrow (1).






4. Install in the reverse order of removal.
