Cylinder Head Assembly

CYLINDER HEAD

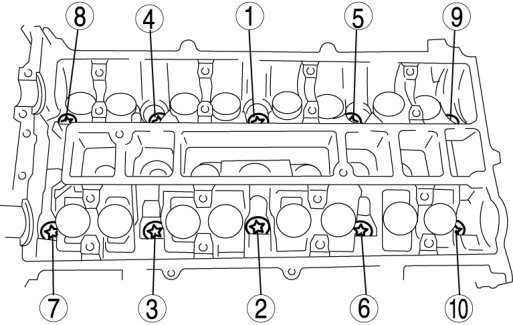

Tightening procedure
Step 1: 3.0-11 Nm {31-112 kgf-cm, 27-97 in-lbf}
Step 2: 13-17 Nm {133-173 kgf-cm, 116-150 in-lbf}
Step 3: 43-47 Nm {4.4-4.7 kgf-m, 32-34 ft-lbf}
Step 4: 88°-92°
Step 5: 88°-92°

BOLT RE-USABILITY

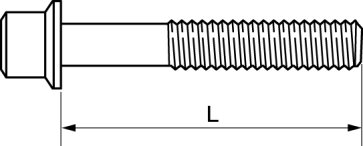

Measure the length of each cylinder head bolt.






Replace any cylinder head bolts that exceed the maximum length.

Cylinder head bolt length
Standard: 144.7-145.3 mm {5.697-5.720 in}
Maximum: 146 mm {5.74 in}

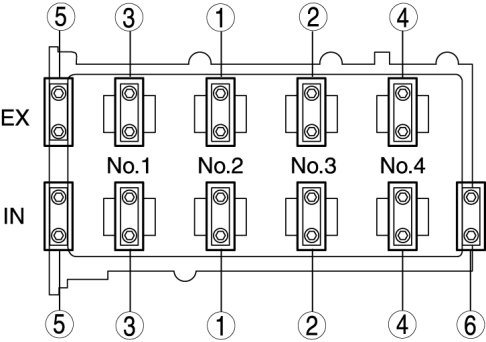

Camshaft caps and temporarily tighten the camshaft cap bolts evenly in two or three passes, and then tighten the camshaft cap bolts using the following two steps, in the order shown in the figure.






Tightening procedure
Step 1: 5.0-9.0 Nm {51-91 kgf-cm, 45-79 in-lbf}
Step 2: 14-17 Nm {1.5-1.7 kgf-m, 11-12 ft-lbf}
