Ball Joint

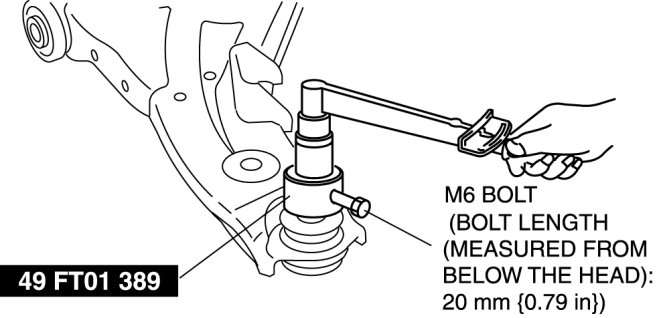

FRONT LOWER ARM INSPECTIONRotate the
ball joint stud 5 times. Install the SST and M6 bolt (bolt length (measured from below the head): 20 mm {0.79 in}) to the ball joint stud, measure the rotational torque using a torque wrench.
If not within the specification, replace the lower arm.
Front lower arm rotational torque
1.4-2.0 Nm {15-20 kgf-cm, 13-17 in-lbf}
