Selector Lever Component Inspection
SELECTOR LEVER COMPONENT INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the center console.
3.
Remove the dashboard completely.
Dashboard Removal/Installation 4.
Disconnect the selector lever component connector.
5.

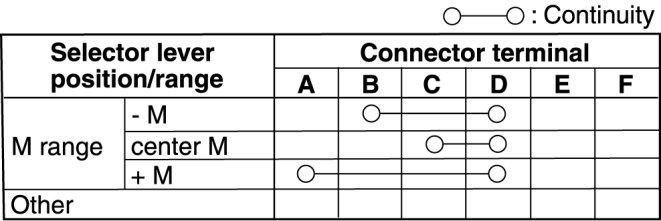

Inspect for continuity at the selector lever component.
-
If there is any malfunction, adjust the selector cable.
Adjustments
