Windshield Washer Hose Removal/Installation

WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Remove the mudguard (RH).

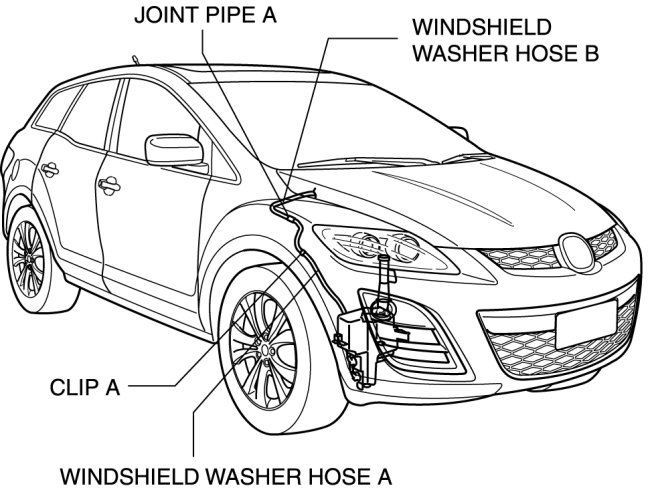

2. Disconnect windshield washer hose A from the windshield washer motor.






3. Remove windshield washer hose A from clip A.

4. Disconnect joint pipe A and remove windshield washer hose A, B.

5. Remove the windshield wiper arm and blade. Windshield Wiper Arm And Blade Removal/Installation

6. Remove the cowl grill. Cowl Grille Removal/Installation

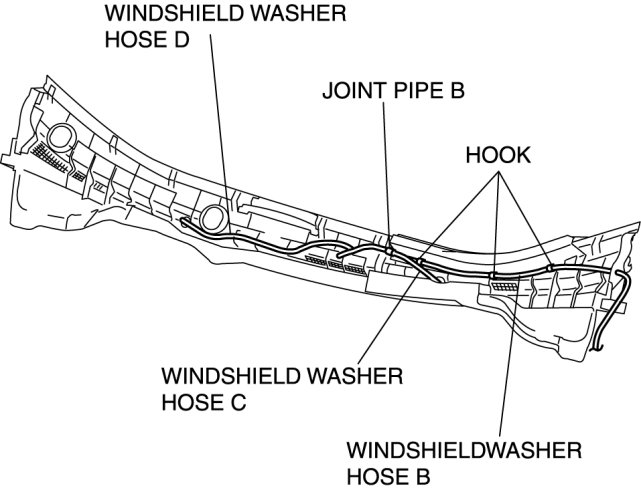

7. Remove windshield washer hose B from hook.






8. Disconnect windshield washer hose C from the washer nozzle.

9. Disconnect windshield washer hose D from the washer nozzle.

10. Disconnect joint pipe B and remove windshield washer hose C, B and D.

11. Install in the reverse order of removal.
