Programming and Relearning




INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE

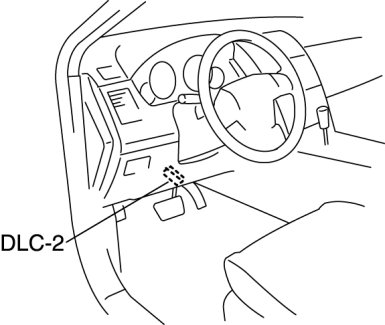

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initialization screen of the IDS.

- "Module Programming"

3. Then, select the following from the screen menu.

- "Programmable Parameters"
- "Warning Lamps/Chimes"

4. Select the following items and change the setting according to the directions on the screen.

Supported items
- Seat belt reminder (D-Seat) (Enable/Disable)
- Seat belt reminder (P-Seat) (Enable/Disable)
