Trunk End Trim Removal/Installation
TRUNK END TRIM REMOVAL/INSTALLATION 1.
Remove the trunk box.
2.
Remove the seat side box.
Seat Side Box Removal/Installation 3.

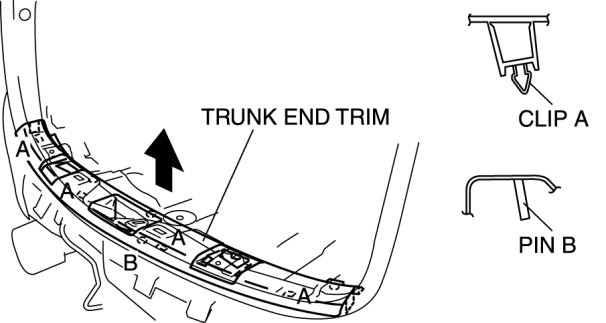

Detach clips A and pin B by pulling them in the direction of the arrow.
4.
Remove the trunk end trim.
5.
Install in the reverse order of removal.
