AWD SOLENOID INSPECTION

1. Disconnect the negative battery cable.

2. Disconnect the AWD solenoid connector.

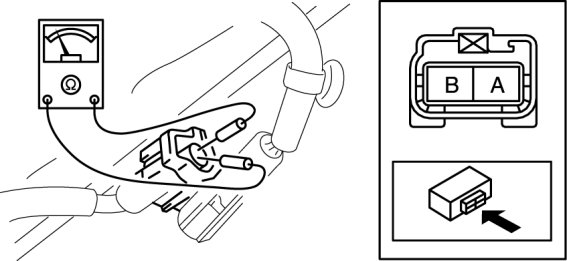

3. Measure resistance between AWD solenoid connector terminals A and B.

- If the resistance is not within the specification, replace the coupling unit.

AWD solenoid resistance
- 1.5-2.0 ohms
- (Rear differential oil temperature at 20°C {68°F})

4. Connect the AWD solenoid connector.

5. Connect the negative battery cable.
