Rear ABS Wheel-Speed Sensor Removal/Installation
REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION 1.
Remove the trunk end trim.
Trunk End Trim Removal/Installation 2.
Remove the partition board.
3.
Remove the trunk side trim.
4.
Remove the fuel-filler pipe protector.
Service and Repair 5.

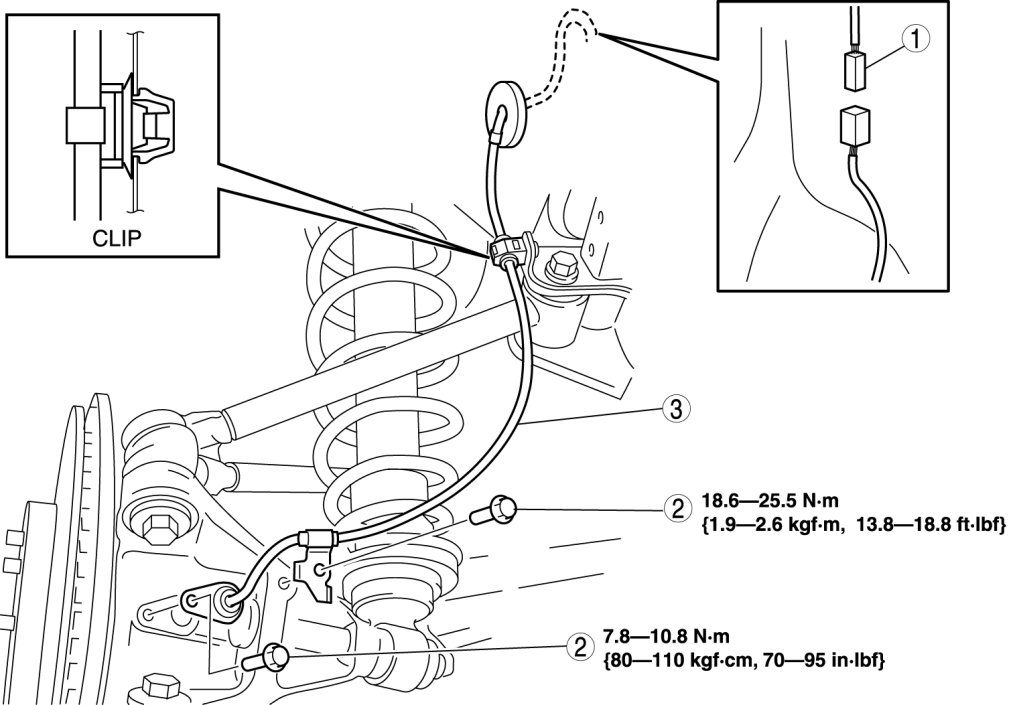

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
