Headlamp Control Module: Testing and Inspection




DRL CONTROL MODULE INSPECTION

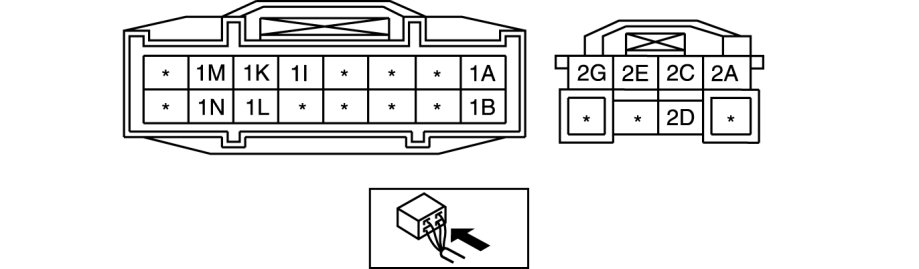

1. Remove the DRL control module with the connector connected. DRL Control Module Removal/Installation

2. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

- If the voltage or continuity is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item (s)".

- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the DRL control module.

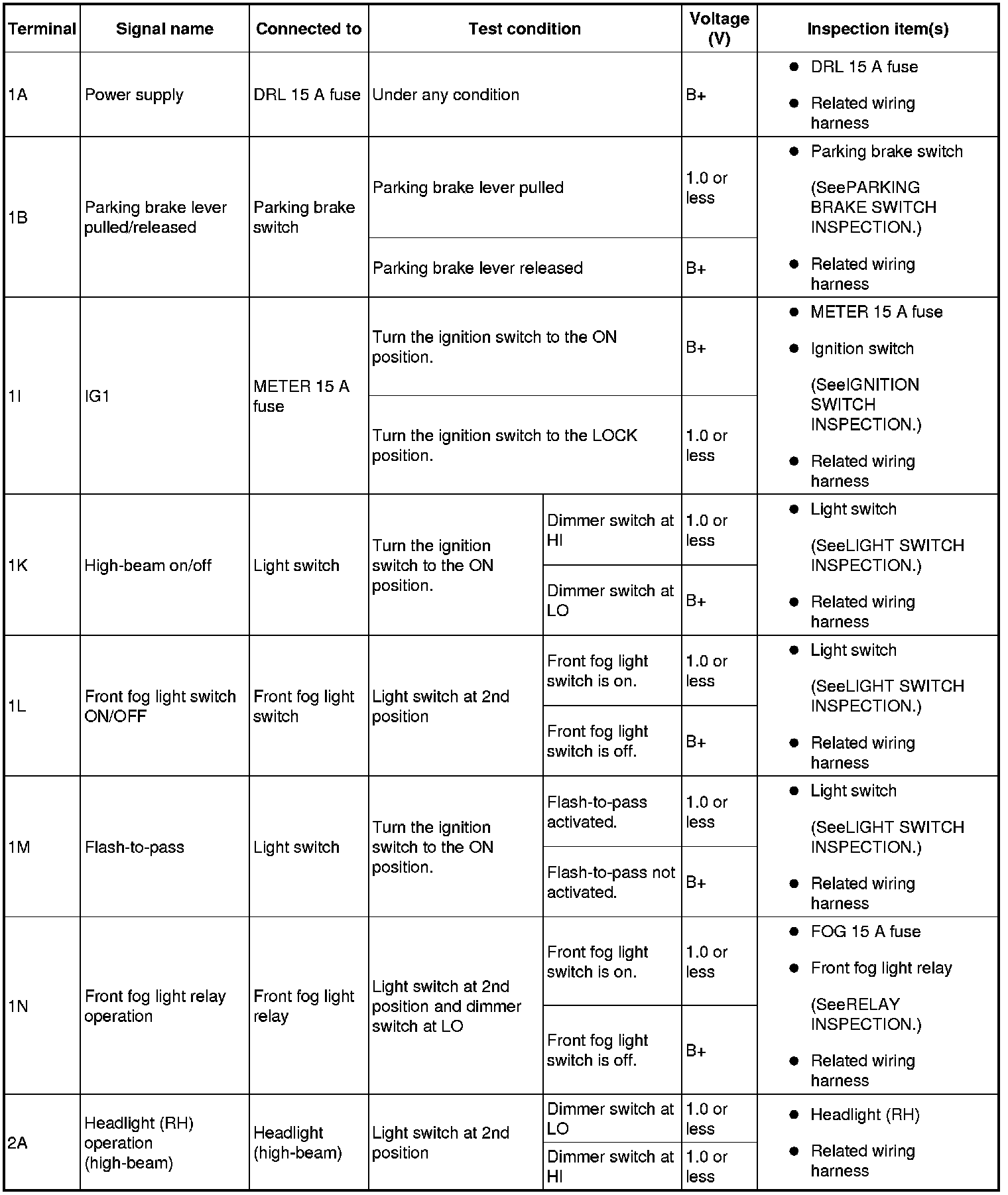

Terminal Voltage Table (Reference)
